Glazed Steel Tile Roll Forming Machine (820)

FOB Price:	7000.00 - 8000.00 USD/Set
Supply Ability:	10 Set(s) per Month
Shipping:	20 Working Days After We Get 30%TT As Deposit
Payment Terms:	L/C, T/T, Western Union, MoneyGram

In Stock

Inquiry Now

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Hebei in China
Packaging Details:	NAKED

Quick Details

No.	Item	Spec	Unit

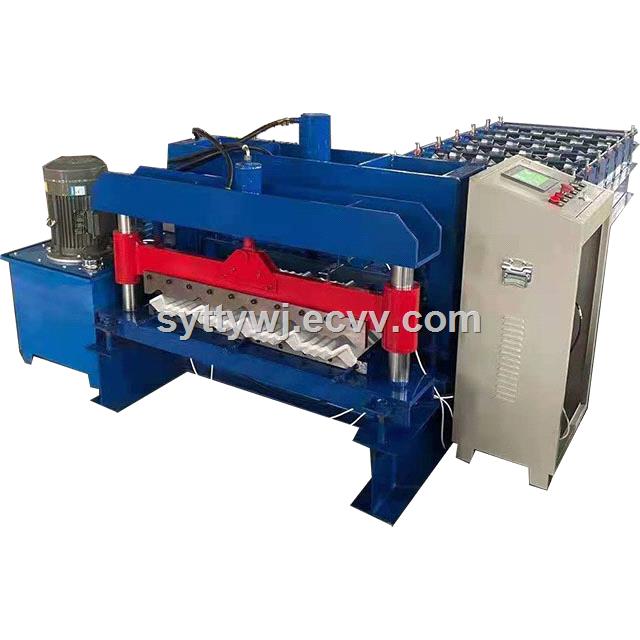

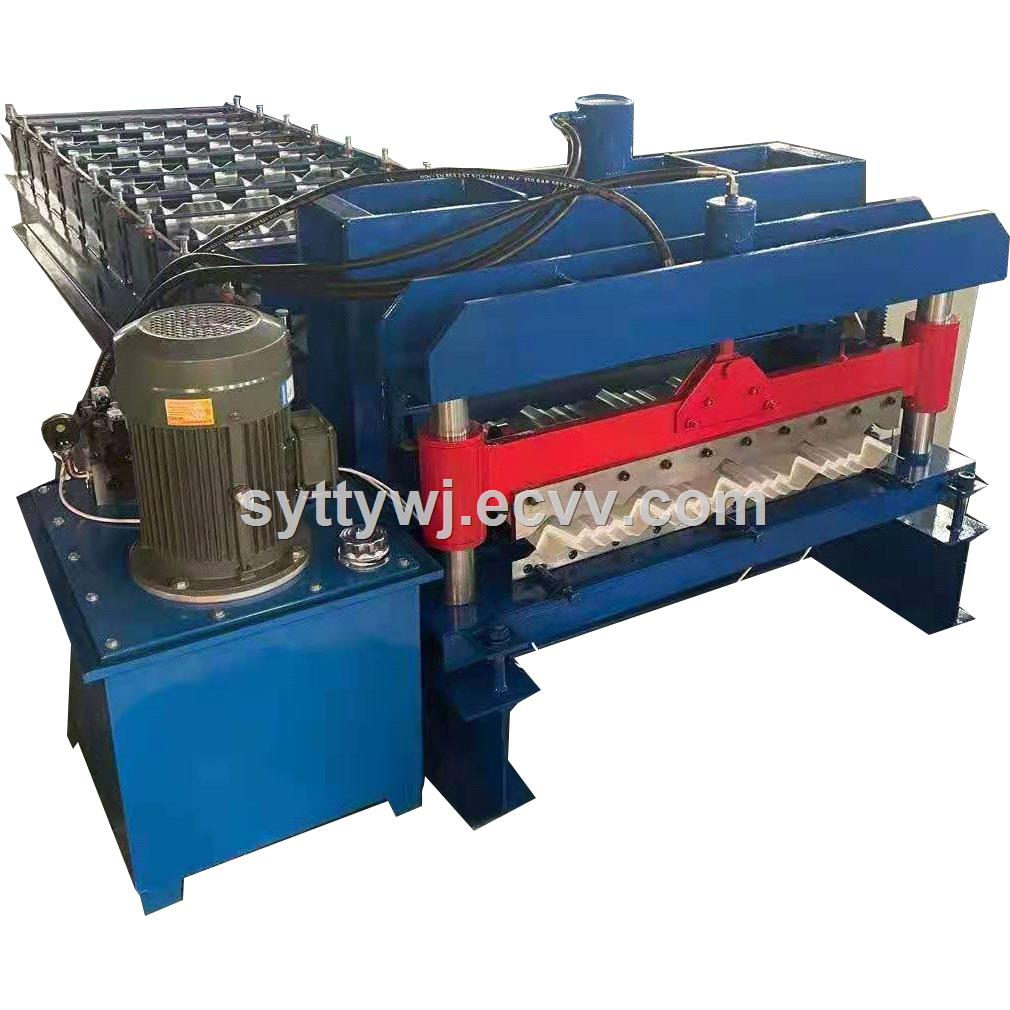

1.	Machine Type	820 Glazed Tile Roll Forming Machine
2.	Structure	300H Steel Welding
3.	Middle Plate Thickness	14	mm
4.	Raw material	PPGI
5.	Feeding width	1000	mm
6.	Effective width	820	mm
7.	Thickness	0.2-0.8	mm
8.	Yield strength	350mpa	Mpa
9.	Working speed	3-5M/MIN	m/min
10.	Roller QTY	12	step
11.	Roller material	45# steel,finishing machining and plating hard chrome on surface.HRC58-62°
12.	Main Shaft material	45# high quality steel, Quenching treatment
13.	Main Shaft	Diameter:70 Solid Shaft	mm
14.	Chain	1	inch
15.	Main Motor Power	3	kw
16.	Hydraulic Pump Station Power	3	kw
17.	Hydraulic pressure	12	Mpa
18.	Voltage	According to the customer requirement
19.	Blade material	Cr12 quenching treatment
20.	Electric System	Control panel
21.	Cutting mode	Hydraulic cutting,cutting after forming
22.	Color	Can as your requirement.
23.	Container	*120GP**
