New Mobilette Mira Max Imagng Technology

FOB Price:	36200.00 - 38100.00 USD/Unit
Supply Ability:	35 Unit(s) per Month
Shipping:	Our logistics methods are structure and is designed to reach you at exactly 7-10 days after payment,
Payment Terms:	L/C, T/T, Western Union, MoneyGram, Other, Bitcoin

In Stock

Inquiry Now

Related products from verified members

patient monitor UN8000D

Price:950.00-955.00 USD/Set

Min. Order:
Portable Ultrasound Scanner(OSEN800U)

Price:

Min. Order:1 Set

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	California in United States

Quick Details

Brand Name: Mobilette
Type: Portable Ultrasonic Diagnostic Devices
Warranty: Yes
Portable: Yes
Certification: ISO 9001, ISO 13485

Specifications

the efficiency of imaging workflows is key, especially in ICUs and emergency wards, in order to enable fast treatment decisions and make work easier.

Flexible to meet your challenges exceptional arm range and precise movements
MAX image quality in every situation low-weight MAX detectors and high imaging power
Always ready to assist you unique charging concept and multiple detector swapping options
MAX effect to multiply gains

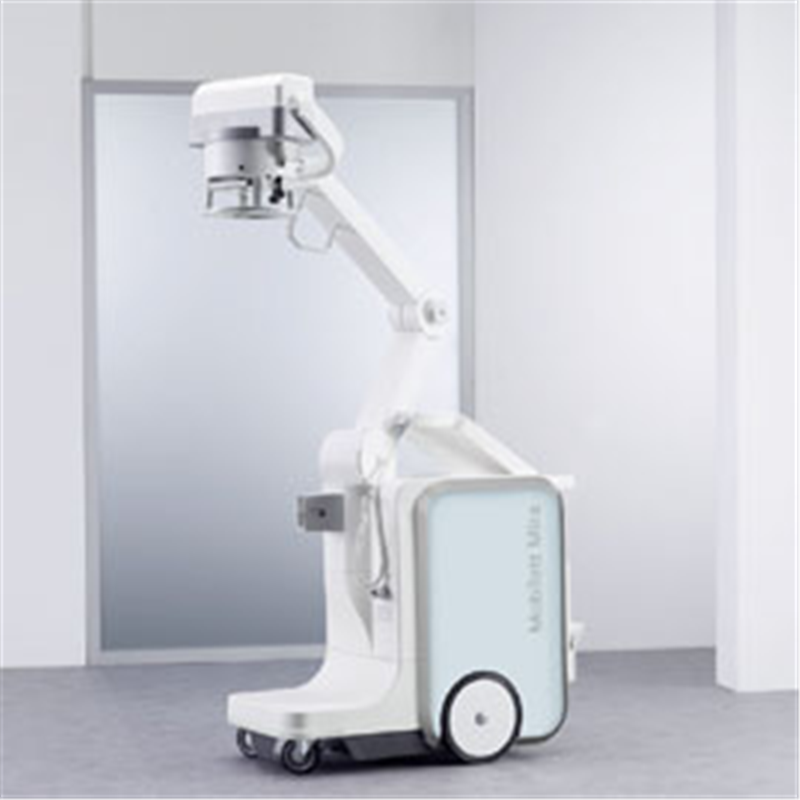

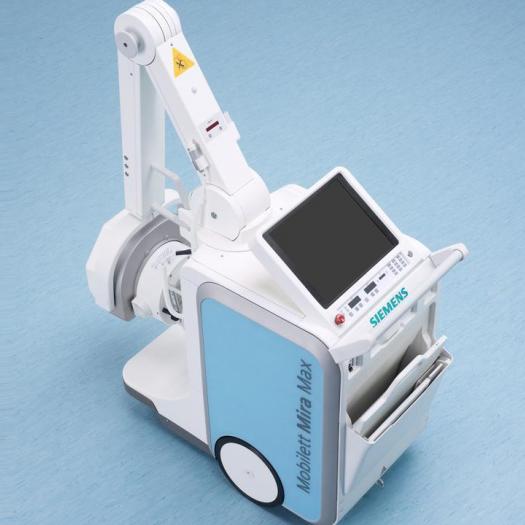

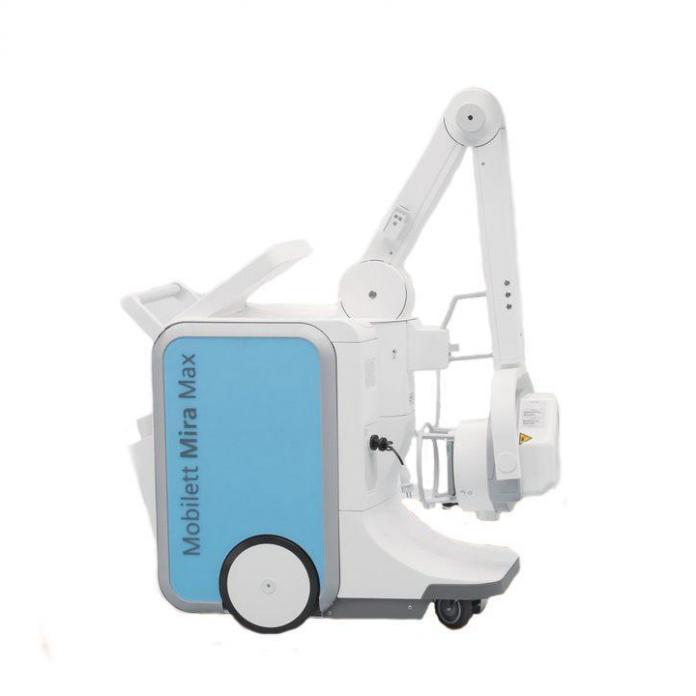

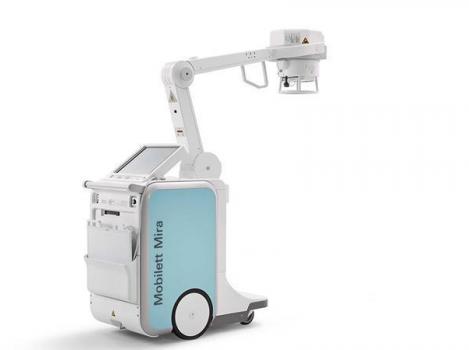

the Siemens Mobilett Mira Max is a portable X-ray machine with 35 kW (450 mA) imaging power. the Mobilett Mira Max is compatible with 2 different sized detectors, the MAX wi-D (14" x 17" x 0.7) and the MAX mini (10" x 12" x0.6" ) which is small enough to fit inside an incubator tray. Automatic imaging processing with DiamondView Plus that enhances bone detail and tissue contrast without the need to increase the dose.
New Mobilette Mira Max Imagng Technology

Highly flexible tube arm that is easy to maneuver with it's ability to rotate 180°.
All cables on the Mira Max run inside the tube arm of the mobile X-ray.
49" max. Tube arm horizontal extension.
84" max. Tube arm height.
Mobilett Mira Max Specifications
Dimensions
Height: 61.8" (157 cm)
Width: 23.4" (59.5 cm)
Depth: 44.5" (113 cm)
Weight: 827 lbs (375 kg)
MAX wi-D Detector
Dimensions: 14" x 17" x 0.7" (35 cm x 43 cm x 1.9 cm)
Weight: 6.6 lbs (3 kg)
Scintillator Cesium iodide (Csl)
MAX Mini Detector
Dimensions: 10" x 12" x 0.6" (24 cm x 30 cm x 1.6 cm)
Weight: 3.5 lbs (1.6 kg)
Scintillator Cesium iodide (Csl)
General
Power Output: Max. 35 kW, max. 450 mA
Max. Focal Spot Height: 84" (213.5 cm)
Max. Horizontal Extension: 49" (124.5 cm)
Standard Battery Pack (65 Ah): Battery operation time 6 h/200 exposures at 70 kV/20 mAs; Standby time (On state) 12 h
High Power Battery Pack (Option) (90 Ah): Battery operation time 8 h/270 exposures at 70 kV/20 mAs; Standby time (On state)
Image Processing: DiamondView Plus - Automatic, dose-neutral image processing for improved organ-specific contrast and detail
Detector Sharing: Possible across all MAX systems via MAXswap
the name Mobilett stands for mobility: the system is easy to maneuver, fast to use, powerful, and flexible in every situation. Today, however, just being mobile isn't enough. the device takes digital mobile X-ray imaging to the next level with the new generation Mobilett Mira. with the possibility to choose between two detector solutions with an image quality comparable to that of high-end stationary X-ray systems, Mobilett Mira also answers our customers individual budget needs.
