| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Zhejiang in China |
| Packaging Details: | carton or wooden case |
Quick Details
- Standard or Nonstandard: Nonstandard
- Shape: Ring Gasket
- Material: Graphite
- Brand Name: J top
- Color: graphite
- Model Number: JT-F6300
- make: as drawing
Specifications

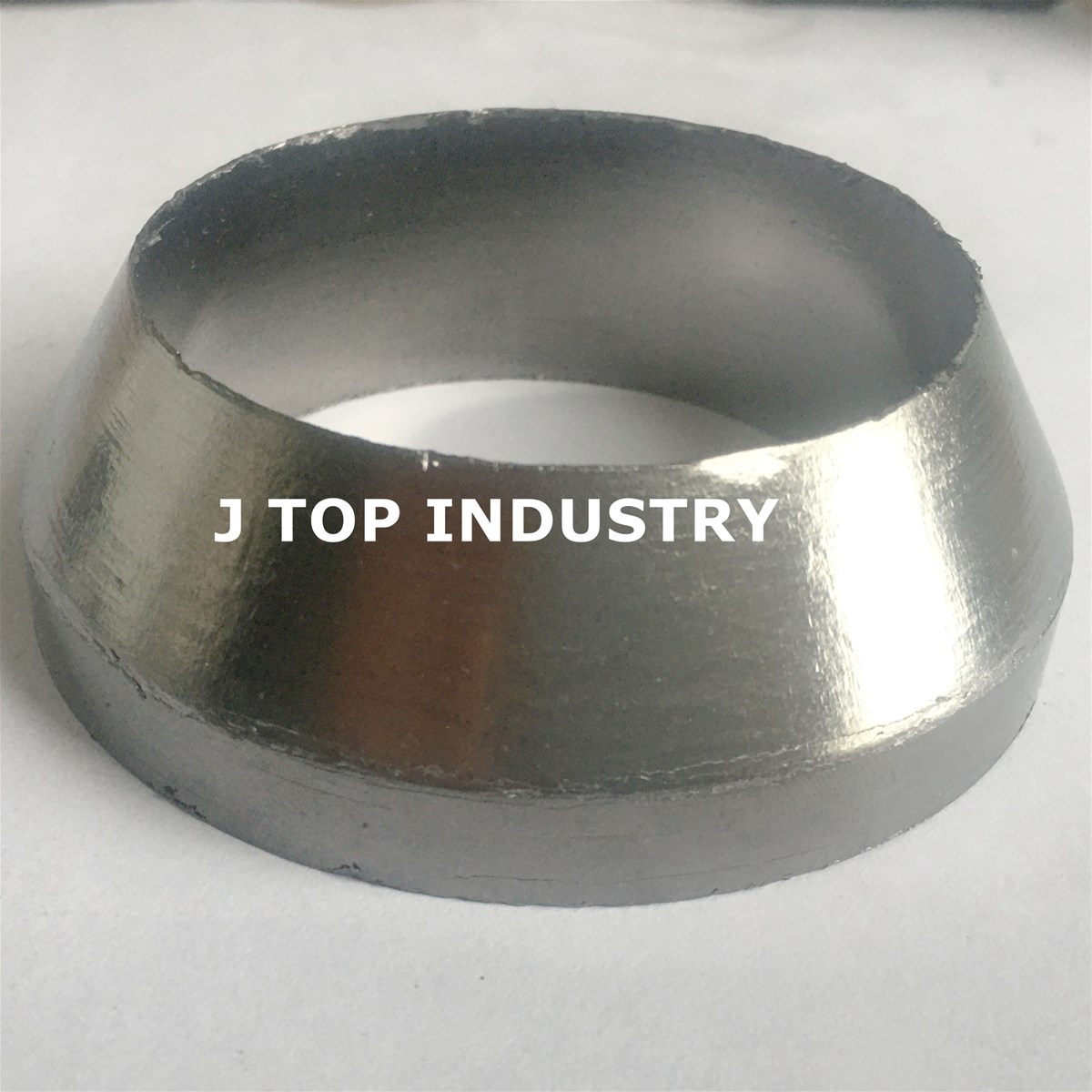

Pure graphite ringJT-F6300
Key words:Graphite Molded ring,graphite self sealing ring,reinforced graphite, self sealing ring ,graphite packing ring
Graphite self Sealing ring is formed by molding expanded graphite belt, with accurate size And density, without any additional filler or adhesive. the purity of graphite Is greater than 98%, and no anti-corrosion treatment is required. Generally, the section of packing ring is square, wedge or V-shaped, and the latter two Are applicable to high-pressure parts. It is molded from pure flexible Graphite, lined with metal, reinforcing material, stainless steel foil, mesh or Other materials.
Application:
It has various Characteristics of expanded graphite and can withstand severe alternating Temperature and pressure. It is an ideal packing for valves and various static seals. In addition to avoiding the use when the valve stem is seriously damaged, it Can be used alone or combined with high carbon fiber packing end ring to Prevent packing extrusion.
the following Are the technical parameters
Scope of Services:
Blower (dry Running) |
Blender |
valve | |
Pressure |
10Bar |
50Bar |
800 Bar |
speed |
10m/s |
5m/s |
2m/s |
Density |
1.2 ~ 1.75g/cm3 (general: 1.6g/cm3) | ||
Temperature |
-220 ~ + 550°C (+ 2800°C non oxidizing atmosphere) | ||
PH value |
0~14 | ||
Gasket type:
Molded ring (cut or no cut)
the incision is Divided into straight incision and oblique incision
Size:
Minimum section: 5mm
Maximum Diameter: 1000mm
