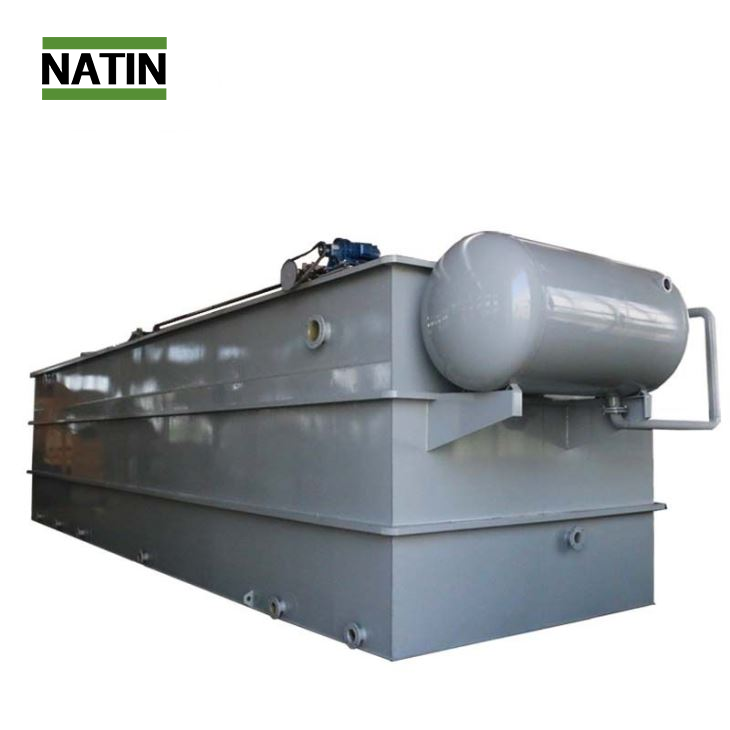

Combined Dissolved Air Flotation Machine DAF System Remove Ss Oil & Grease

FOB Price:	2000.00 - 60000.00 USD/Set
Supply Ability:	30 Set(s) per Month
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Sichuan in China
Packaging Details:	wooden package

Quick Details

Brand Name: NT
name: dissolved air flotation machine
Material: SS304 316
application: lectroplating, chemical industry, paper-making, oil refining, tannery
Type: waste water treatment
Model Number: NTGF
MODEL: NTGF-1

Specifications

the following example is for you reference.
Combined dissolved air flotation machine DAF system remove ss oil and grease

Main Advantages:

1. the vortex dissolving gas tank dissolves the gas in water and releases it under reduced pressure to generate fine bubbles in the water. the particle size of the fine bubbles is about 20-40μm, which is more conducive to adhesion to the floc.

2. Due to the loose requirements for flocculation, the amount of flocculant can be saved.

3. the purification effect is more obvious than that of pressurized dissolved air flotation.

4. It is easy to adjust during operation, the process is stable, and no special person is required for management.

5.SolveMany problems such as unstable operation of traditional air flotation devices, large bubbles and clogged release heads. to.

6. since the air flotation process is an aerobic process, the odor problem generated by the sludge has been well resolved.

Technical details:

Model	Capacity(m3/h)	Volume of dissolved air water(m3/h)	Main power(kW)	Aerated motor(kW)	Scraper(kW)	Total power(kW)
Model	Capacity(m3/h)	Volume of dissolved air water(m3/h)	Main power(kW)	Aerated motor(kW)	Scraper(kW)	Total power(kW)
NTGF-1	0.5-1	0.3-0.5	0.55	0.55	0.18	1.28
NTGF-2	1-2	0.5-0.8	0.55	0.55	0.18	1.28
NTGF-3	2-3	1-1.5	1.1	0.55	0.37	2.02
NTGF-5	3-5	1.5-2	1.1	0.55	0.37	2.02
NTGF-10	5-10	3-4	1.5/5.5	0.75	0.37	2.62/6.62
NTGF-15	10-15	4-5	2.2/5.5	0.75	0.37	3.32/6.62
NTGF-20	15-20	5-7	2.2/5.5	0.75	0.37	3.32/6.62
NTGF-30	20-30	8-12	5.5	0.75	0.37	6.62
NTGF-40	30-40	10-15	5.5	0.75	0.37	6.62
NTGF-50	40-50	15-18	7.5	1.5	0.37	9.37
NTGF-60	50-60	18-20	7.5	1.5	0.37	9.37
NTGF-70	60-70	20-25	11	2.2	0.55	13.75
NTGF-80	70-80	25-30	11	2.2	0.55	13.75
NTGF-100	80-100	35-40	15	2.2	0.55	17.75
NTGF-150	120-150	40-50	15	2.2	0.55	17.75

Our Factory:

Natin Environmental Protection Technology Co., Ltd is located in Chengdu, the historical and cultural capital of China. Which is a professional environmental protection equipment manufacturing and engineering service enterprise integrating technology research and development, manufacturing, installation and commissioning services, including municipal, paper-making, petrochemicals, food, and pharmaceuticals., slaughter, textile printing and dyeing, domestic sewage and etc. the main products include screw press sludge dewatering machine, auto dosing device, grille decontamination machine, dissolved air flotation machine, water filtration equipment, internal and external water rotary drum filter and other equipment.

Combined dissolved air flotation machine DAF system remove ss oil and grease
