LED Display Module Potting Robot Automatic Equipment 2component Silicone Potting for LED Display
| FOB Price: | 1.00 - 2.00 USD/Piece |
|---|---|
| Payment Terms: | T/T |
Related products from verified members
Quick Details
- Type: Gluing Machine
- Packaging Material: Wood
- Packaging Type: Cartons
- Application: Chemical
- Condition: New
- Type: Automatic
- Certification: CE
- Weight: 420
- Power: 220
- Voltage: 50
- Driven Type: Electric
- Automatic Grade: Automatic
- Whatsapp: 0086 134 2516 4065
Specifications
Whatsapp 0086 134 2516 4065

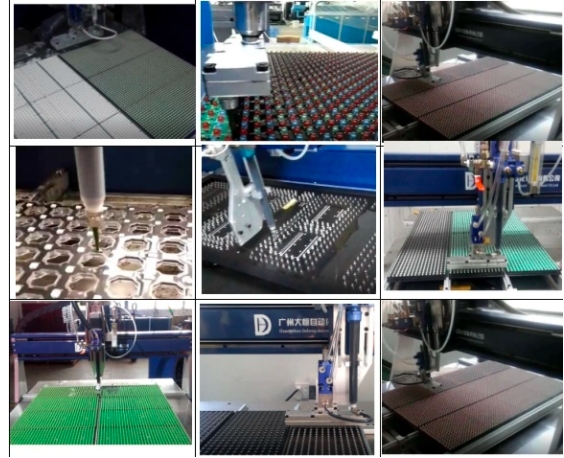

Glue potting process
to outdoor LED display, LED sign, LED screen, the glue potting machines are already widly used in most of manufacturers in the market.
Our potting machine is easy to apply the adhesive to the glass surface. the formulation is available in optically clear or opaque white or black. Today many manufacturer are using the white grade.
Our machine is ideal for bonding thermally sensitive parts, with high precision mixing ratio of AB glue, the adhesion to similar and dissimilar substrates is outstanding.
There are many other advantages of using our glue potting machine:
1.They are lower processing cost
2.Easy and fast processing
3.Uniform coverage
4.Self-level behavior
5.Matarial flows into the smallest gaps
6.No silicone overflowing over the LED
7.Preicision mixing and good adhesion
8.Small intra pixel LED to LED distances
Our System accurately meters, mixes and dispenses two-component medium to low-viscosity materials for potting, gasketing,sealing, encapsulation and syringe filling. for variable ratio dispensing, the system handles ratios from 1:1 to 10:1.

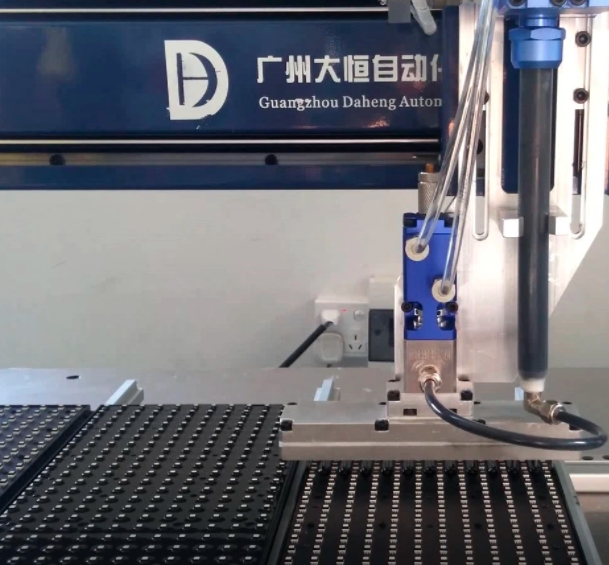

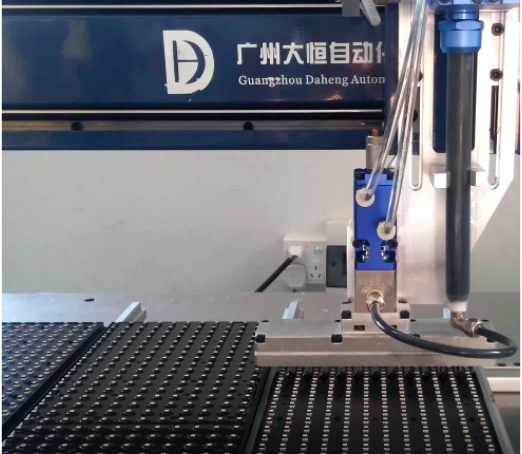

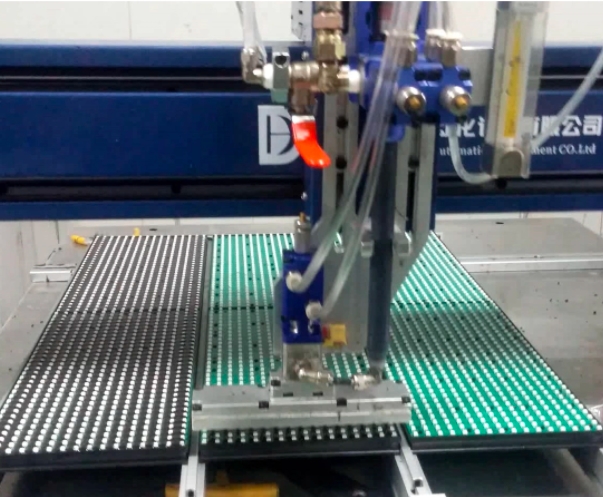

the system is composed of material tank, metering pump, metering motor, material pipe, two component valve, motor for dynamic stirring, mixing tube and 3 axis robotic arms. Two kinds of glue are separated before they mix in mixing tube, so the glue will not cure in devices. Glue valve is with vacuum function to keep thin fluid from dripping. Other optional functions include:
Tank stirring function;
Tank defoaming function;
Thermostat heating function on Tank, pipe, and valve;
FeAtures:
1. Automatic metering and mixing, touch screen PLC control system, English operation interface allow easy to set parameters;
2. Big LCD screen displays various processing data;
3. Easy programming of dots, stripes, arcs, compound arcs and patterns on different planes;
4. Gluing speed and timing can be set;
5. CAD file can be imported and turned to be dispensing patterns, and downloaded via USB; (optional function)
6. Mixing ratio 1:1-1:10 and gluing volume can be set and adjusted as per actual need. Dynamic mixing ensure two component glue to be mixed to a fully homogeneous consistency;
7. Metering, mixing and gluing simultaneously;
8. Two tanks keep A glue and B glue separately;
9. Liquid level sensor, alarm function;
10. Tank stirring and vacuum defoaming function optional;
11. Auto cleaning; the cleaning mode can be manually or automatically, manual mode just remove the mixing tube then soak into cleaning agent, after 10 min take out and clean with compressed air, Automatic mode only need to operate the cleaning switch on touch screen within 1 minute to complete;
12. Glue tank/metering pump/glue pipe heating function (optional);
13. Vacuum control keeps thin fluids from dripping;
14. Unique control system which will not influenced by air pressure factor, ensures optimal dispensing performance;
15. XYZ axis can be programmed to dispense glue along desired patterns.
Application Area:
1. Electrical Products: Electronic parts, integrated circuits, circuit board solder paste, fixed and dust and moisture protection, LCD liquid crystal screen, speakers, headphone, audio, LED, optical lens, SMD transformers, relays.
2. Communication Products: Keypad, mobile phone casing bonding, radio, telephone, Computers, MP4, electronic toys, chassis bonding, switches, connectors, plug cable.
I.Machine description and working principle
Automatic glue mixing machine is mainly used for a two-component glue( Epoxy/ Silicone/PU,etc adhesive), automatic metering and mixing the ratio of glue. the glue are stored in two barrels separately, according the glue weight ratio and volume demand automatic metering by two sets of precision pump, supply to a mixing device fully mixing, and then potting/dispensing the desired products.
II.Main Function:
1.Automatic metering and mixing
2.Manual Gluing
3.Auto alarm for lack of material or full material
4.Gluing ratio and quantity adjustable
5.Auto cleaning
6.Glue tank Vacuum Defoaming (Optional)
7.Glue barrels,metering pump,glue pipe can be heating (Optional)

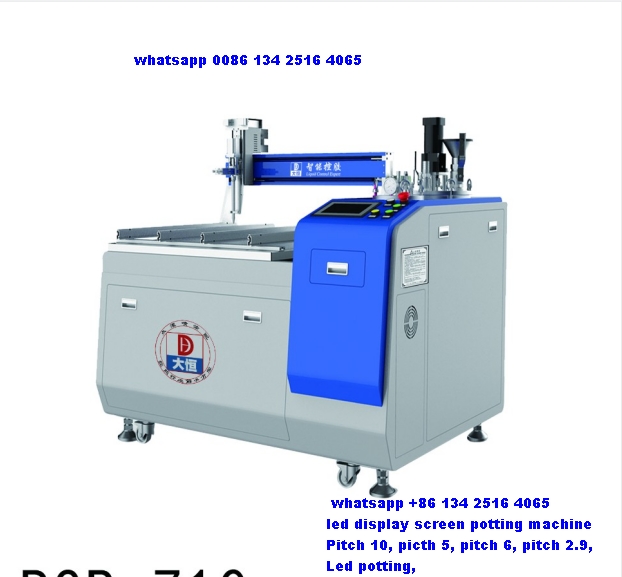

III.Specification:
| Model No: | PGB-700 |
| Mixing Ratio | 100:100-10:100(1:1-1:10) Adjustable |
| Metering precision | ±1% |
| Outflow speed | 1g/sec-15g/sec |
| Mixing precision | ±1% |
| Mixing mode | Dynamic mixing /Static mixing |
| Glue Viscosity | Lower than 20000 CPS(mPas) |
| Control mode | PLC + Touch Screen |
| Control system | Independent R&D |
| Measuring mode | Stepping motor/High-precision, wear-resistant, Long-life Gear pump |
| Working voltage | AC 220V 50Hz/60Hz |
| Power requirement | 3.55KW |
| Air pressure requirement | 4.5-8KG |
| Machine Dimension | 1500(L)*1200(W)*1500(H)mm |
| Weight | Approx 260 KG |
| Work environment | Humidity: 20%~98%RH; Temperature: 0~+40°c |
Suitable Material: for waterproof, adhesive, fixed two-component adhesive.
Such as: Crystal or less additive glue --Silicone, epoxy, polyurethane(PU), etc.
Applications:LED products,Crafts,Electronic components
Such as:Wall washer light, LED bar, LED strip, Ads module, Sensor, Photovoltaic module, Photovoltaic inverter.Etc
IV:Application
