jiangyin jack-aiva co.,ltd
China Manufacturer with main products: Spiral duct machine Roll forming machine Flange forming machine profile bar bender series tube |
Related products from verified members
| Place of Origin: | Jiangsu Jiangyin in China |
|---|---|
| Packaging Details: | box |
Specifications

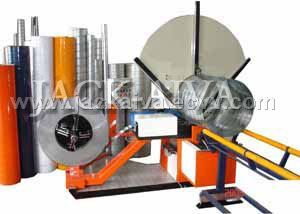

Advantages * Special Model Easy To Adjust * High-Speed synchro flying Cutting System * CNC Operation Convenient For Worker * Light and small,suitable for job site * Large diameter range * High quality and high service life * For processing of tubes in stainless steel,Galvanization steel plate,Auminium and copper. * Automatic tube ejection device, Automatic setting and length measuring device. *Automatic counting system for number of tubes produced. Technical data Diameter Range :JVTF-MR1500 Tube Diameter : 85-1500mm Tube Length : 100-8000mm Thickness of Strip :0.4-1.2mm Width of Strip : 137mm Strip Speed : 1-38/min Dimension (LxWxH):2100*2000*2850mm Weight : 2000kg Control System : PLC automatic control Main Motor Power :11kw The power of hydraulic pressure motor : 4kw The power of water pump motor : 125W The power of feeding motor :125W Cutting system :Roll-and-Shear random cutting Run-out frame :Hydraulic pressure drops in automatic way Forming system :Each duct with one mold(Fitting out mold each below 300mm for choosing two among them)
Service Guarantee
-
Free Service Charge
ECVV doesn't charge any service fee to Buyers for buying this product.
-
ECVV Supply
ECVV is responsible for supply, and provides product quality inspection, fund supervision and supply chain services.
-
Product Quality Commitment
ECVV China Sourcing Agent will assess the reputation and supply ability of the factory and conduct field trips to select the high-quality Chinese factories for buyers.
-
Deposit Service Commitments
In order to improve the quality of service, ECVV will charge for a 100CNY deposit for the agent purchasing order, and the deposit will be part of subsequent purchasing costs.
After paying a deposit, if the purchasing order is not completed because of unsatisfied ECVV services, ECVV will refund your deposit.
Spiral Tube Former from this supplier
Min Order: 1 Piece
FOB Price: 1,000.00-5,000.00 USD/Set
Min Order: 1 Set
FOB Price: 17000.00-18000.00 USD/Case
Min Order: 1 Case
