Single Phase Energy Meter Test Instrument

FOB Price:	20,000.00 - 50,000.00 USD/Set
Supply Ability:	3,000 Set/Sets per Year
Shipping:	30 working days
Payment Terms:	L/C, T/T, D/A, D/P, Western Union

In Stock

Inquiry Now

Product Details

Place of Origin:	Zhejiang in China
Packaging Details:	export packing

Specifications

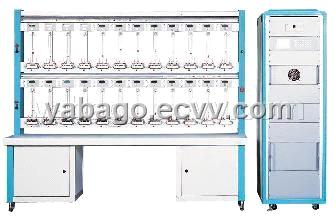

Single Phase Energy Meter Test Instrument (Split Type)

Overview:

The RT6103-S Single Phase Energy Meter Test Instrument (Split Type) adopts internationally advanced new-generation digital power source technologt,integrates all the technological advantages of both domestic and foreign watt-hour meter calibration software, and is introduced to global market by Rowwin Test in a powerful and sensational way.The single phase energy meter test instrument comprises of PWM power source,standard digital energy meter,error processor and PC processing software,this energy meter test instrument can test 3 to 60 various watt-hour meters of Grade 0.5 or lower simultaneously,also is an ideal new-generation multi-position energy meter testing instrument.

Technical Parameters:

1. Accuracy class: 0.1/0.05

2. Reference standard energy meter: Single phase wide-measurement range standard energy meter.(Accuracy class:0.1/0.05)

Multi-path voltage transformer: Accuracy class:0.01; Rated load per path:10VA

3. Voltage range:220v(240V option),Output range:0~125%,Resolution:0.01%full range

4. Current measurement range:0.1~100A(200A option),Output range:0~120%,Resolution:0.0001A(minimum)

5. Phase angle:0~360°,Resolution of phase angle setting:0.01°

6. Frequency:45Hz~65Hz,Resolution:0.01Hz

7. Output waveform distortion:Both voltage and current<0.5%

8. Output voltage,current and power stability:<0.05%

9. Output capacity:Current:1,000VA(120A);Voltage:400VA(24 meter testing positions)

If necessary,the maximum load can be extended to Current:1,800VA and Voltage:1,000VA
