Henson Advanced technology Group
China Manufacturer with main products: Precision Castings Pump Mechanical & electrical Products Multi-Position Die Progressive Die Checking Fixtures Welding fixture Welding... |
Related products from verified members
| Place of Origin: | shanghai shanghai in China |
|---|
Specifications

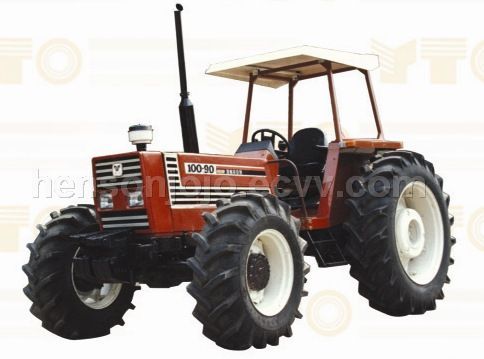

X1004 Wheeled Tractors The X1004 Wheeled Tractors is developed on the basis of the Italian FIAT wheeled tractor chassis technology, adopting the British technology-based 6-cylinder turbocharged engine. The machine body has a streamline configuration. The tractor has a low fuel consumption and a desirable power economic. It has multiple gears and a wide speed range. Besides, it is flexible in steering and easy to operate. Engine: Model: LR6105T10X Type: Vertical, water-cooled, four-stroke direct injection diesel Rated rotation speed: 2400 r/min Transmission system: Speed range, forward , reverse: 2.24-29.30 / 4.83-13.67 km/h Machine body: Wheel base: 2688.5 mm Front wheel tread , Rear wheel tread: 1760-2000 , 1600-2200 mm Min. turning radius: 4.6 m Max. operating weight: 5280 kg Specific fuel consumption under rated conditions: less than 242 g/kW.h Wheel tyres (front , rear): 14.9-24 ,16.9-38 Lifting capacity: 22 kN PTO shaft type: Rear-positioned, independent, and synchronous PTO shaft rotation speed: 540 or 1000 r.min Max. tractive force: 36 kN Overall dimensions: Overall dimensions (L*W*H): 4770*2330*2960 mm Min. ground clearance: 470 mm
