Jinan Jiahe CNC Router Co.,Ltd.
China Manufacturer with main products: CNC engraving machines (wood working CNC, CNC Router, metal engraving machine, glass engraving machine, cylinder engraving machine, stone... |
Related products from verified members
| Place of Origin: | Shandong in China |
|---|
Specifications

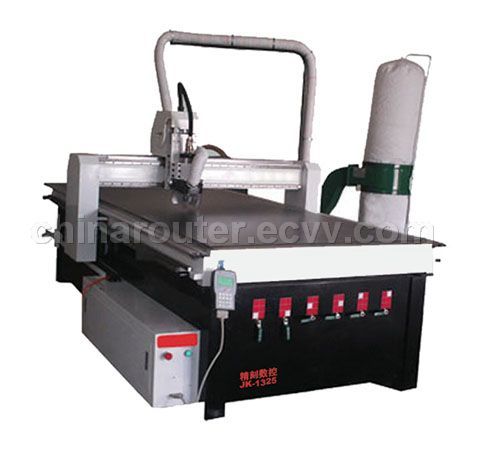

Engraving machineJK-1325A Usage:?can be used to make wood mould, art craft, dial, 3D word, PCB, stamp, relievo, and signs. Machine features: 1. Particular style, competent for elaborate engraving and cutting. 2. 3000W-5500W water-cooled spindle motor. 3. The lathe bed is wholly cast with iron to ensure high stability. Three axes all adopt linear square rail. 4. High accurate gears ensure operating speed as high as 30m/min. 5. Be compatible with type 3, Artcut, Artcam software. 6.Memory to ensure the processing point when the blade is broken or postpone stitution. Specific saving mode of different points. Type: JK-1325A Machine body: whole cast iron or cast aluminum Work dimensions: 1300 x 2500 x 120mm Body dimensions: 1600 x3100 x 1600mm Z-axis working area: 150mm Max. Feeding height: 200mm or smaller Cut thickness of material: 80mm or smaller Max. Speed: 30m/min Mechanical precision: 0.01mm Software: type 3, Artcut, Artcam software Power source: AC 380/50-60Hz Driver type: stepper motor Spindle: 3000W-5500W variable speed, water-cooled motor Spindle speed: 24, 000rpm Blade diameter: 3.175- 12.7mm Control system: Weihong(NCSTUDIO)or DSP(USB interface) Command: HPGL, G code, u00, mmg, plt Additional device: Absorption and dust collection device
