tomato paste packing machine

Shipping:	30 days
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Related products from verified members

Product Details

Place of Origin:	Zhejiang in China
Packaging Details:	standard export wooden case

Specifications

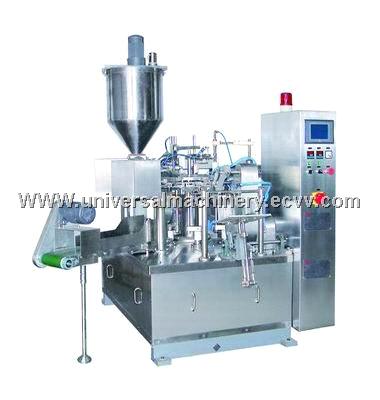

Product Name: full-auto filling & sealing liquid packing machine

Specification:

1. Easy to operate, adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.

2. Frequency conversion adjusts the speed: This machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.

3. Automatic checking: No pouch or pouch open error, no fill, no seal. The bag can be used again, avoid wasting packing materials and raw materials.

4. Safety device: No bag?> no filling?>no heat seal, bag is no opened?>no filling no heat seal. Then, it will be alarming.

5. Use the plastic bearing, don't need put on oil, less pollution.

6. Use no oil vacuum pump, avoid polluting the environment in the production.

7. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification

8. Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food

9. With different feeders changed to pack solid, liquid, thick liquid, powder and so on.

10. The packing bag suits in extensive range, suit for multi-layer compound, monolayer PE, PP and so on Preformed bag made by film

And paper.

11. Coding machine: Ribbon coding, it can permit 1 row or 2 rows numbers or figure. 1 row can Be with 16 numbers or figures. So 2 rows have 32 numbers or figures.

Usage:

Tomato paste, liquid detergent, fruit juice, butter etc.

Model: GD6-200A+YJL500A

Working position: 6 working position
6 working position

Pre-made bag length: 100-210mm

Pre-made bag width: 350mm

Max packing speed: ≤30pcs/min

Packing dose: 5-1500ml/bag

Filling error: ≤+/-1%

Machine weight: 1000kgs

Total power: 1.5kw(380V, 50HZ)

Machine Dimension: 1800*1600*1500mm

Machine 6 working position process:

1. Getting bag

2. Coding date

3. Opening bag

4. Filling

5. Heat seal

6. Forming and output
