Guangdong Hongming Intelligent Joint Stock Co., Ltd.
China Manufacturer with main products: Box Making Machine, Rigid Box Making Machine, Corner Pasting Machine, Case Maker, Gluing and Spotter Machine, Gluing Machine, Box Grooving... |
Automatic Rigid Box Making Machine HM-ZD2418
| Supply Ability: | 20 Set(s) per Month |
|---|---|
| Shipping: | 20days |
| Payment Terms: | L/C, T/T |
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Guangdong in China |
| Packaging Details: | Wooden Box |
Quick Details
- Type: Packaging Line
- Brand Name: HONGMING
- Packaging Material: Wood
- Packaging Type: Case
- Application: Commodity,Food
- Type: package
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Weight: 4000kg
- Dimension(L*W*H): 4500X4000X3000mm
- Model Number: HM-ZD2418
- Power: 23KW
- Voltage: AC380V
- Automatic Grade: Automatic
- Condition: New
- Max.box length: 240mm
- Max.Box Width: 160mm
- Max.Box height: 80mm
Specifications
Dongguan
Hongming Machinery Co., Ltd is the leading automatic rigid box making machine
Producer in China. the Model HM-ZD2418 is an upgraded model from HM-ZD240.

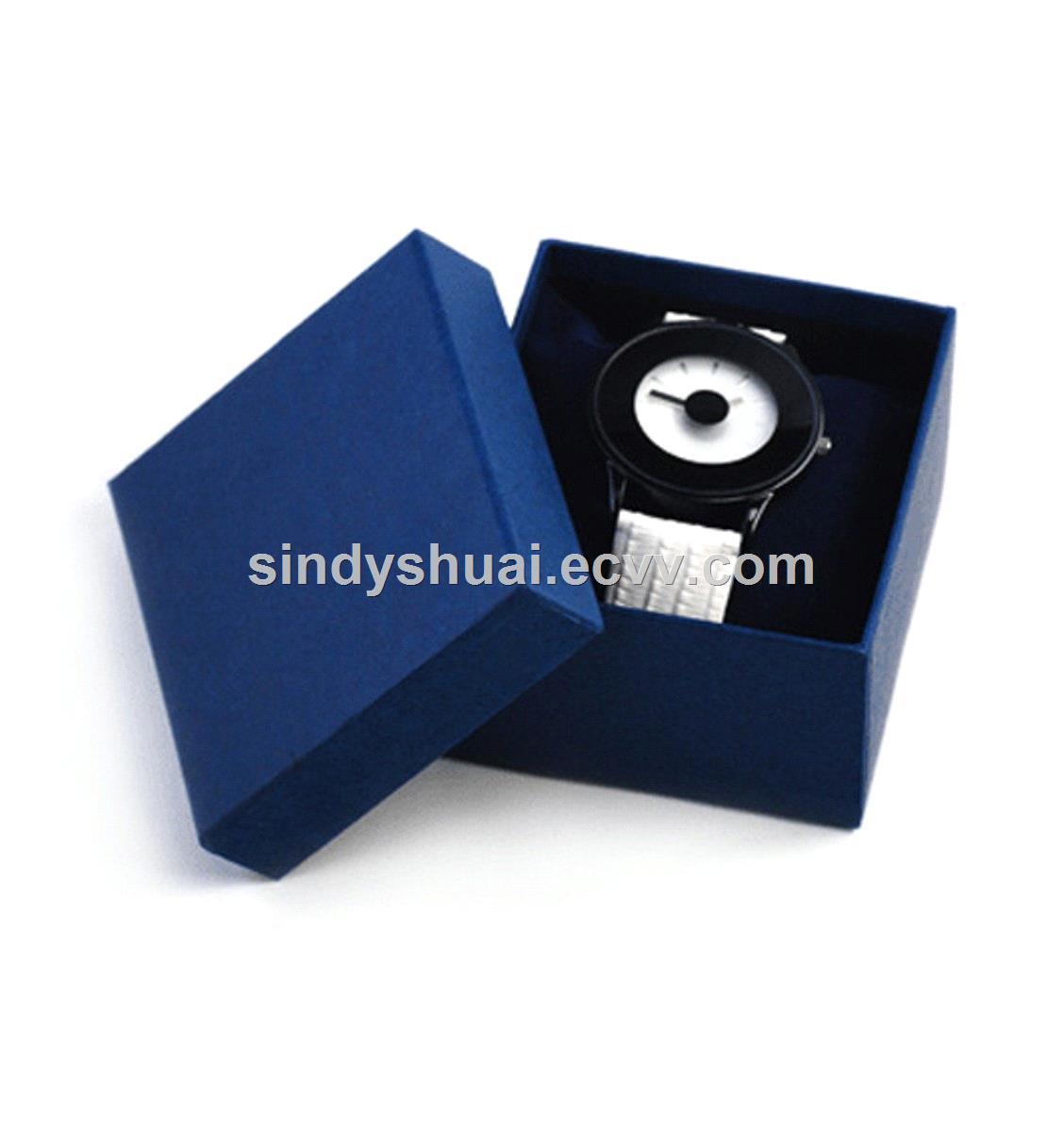

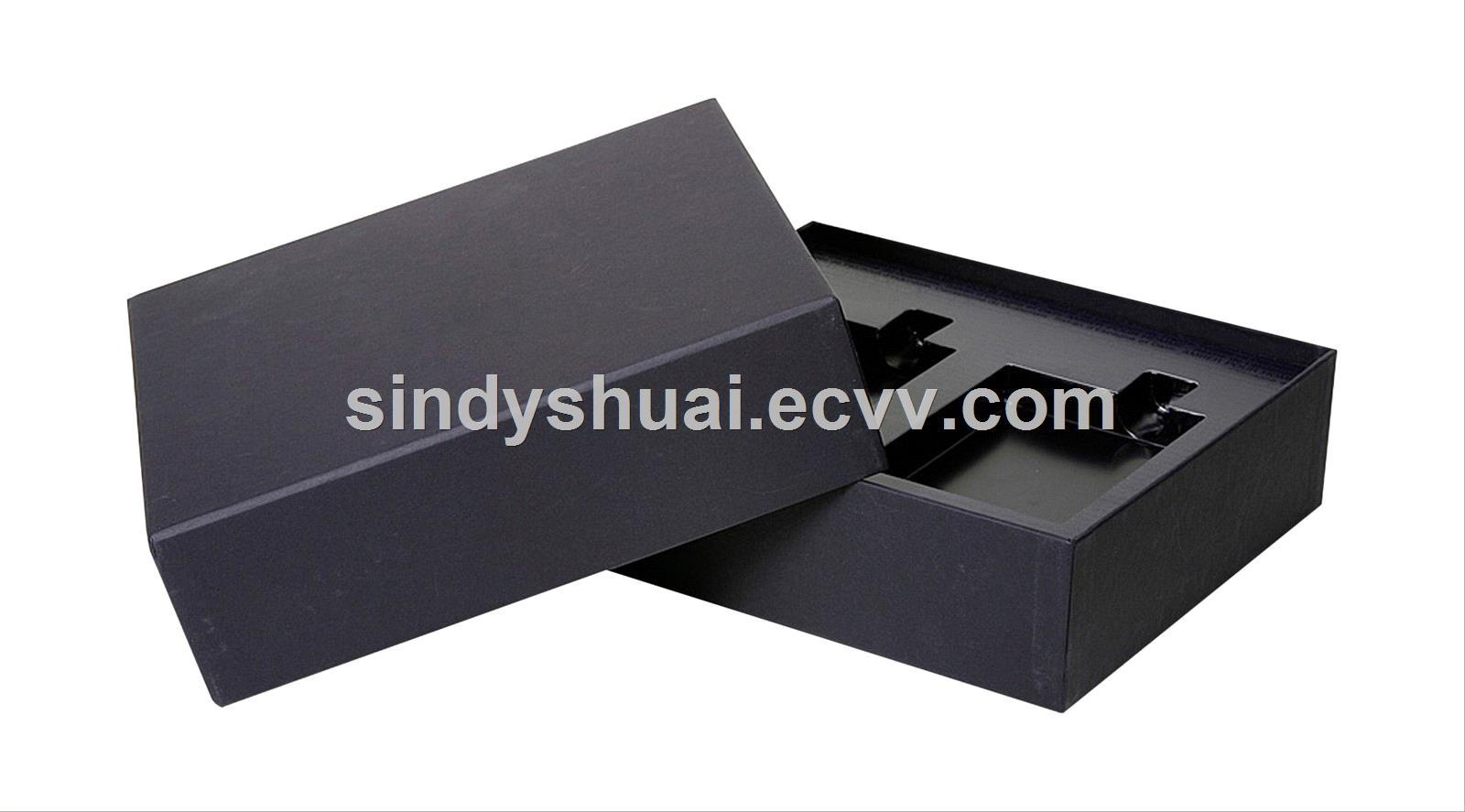

HM-ZD2418 Automatic Rigid Box Line is specialized in mass producing all kinds of small Rigid boxes, such as finest jewelry boxes, ornaments boxes, gift boxes, watch Boxes, pencil boxes, candy boxes, souvenir boxes, and cosmetic boxes, etc. the Minimum size for wrapped box is 45x35x10mm, which covers the ring boxes. It is the automatic box maker in China for the smallest rigid boxes.
1. Main Characteristics of the machine:
1. Suit to all kinds of rigid boxes in mass production;
2. Computer control with error auto stop and display;
3. Adopt servo and PLC;
4. Automatically change mould(optional);
5. Automatically feed paper and greyboard;
6. 24-hours control for glue pre-heating;
7. Input 300 product formula, and add 2G memory SD Card(optional);

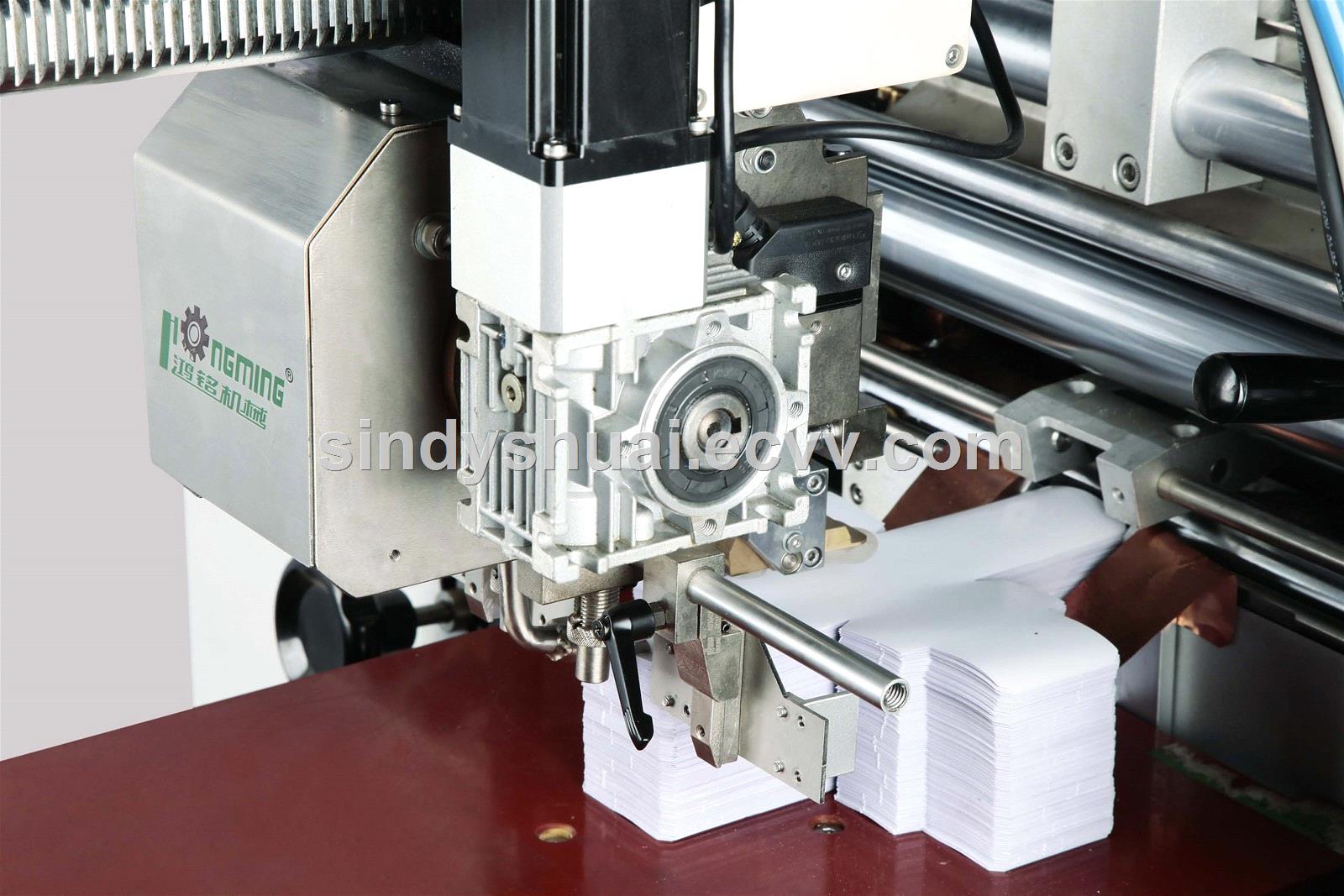

8. Automatically cut and heat tape to paste the greyboard Box's quad stayer (four corners), with independent man-machine control;

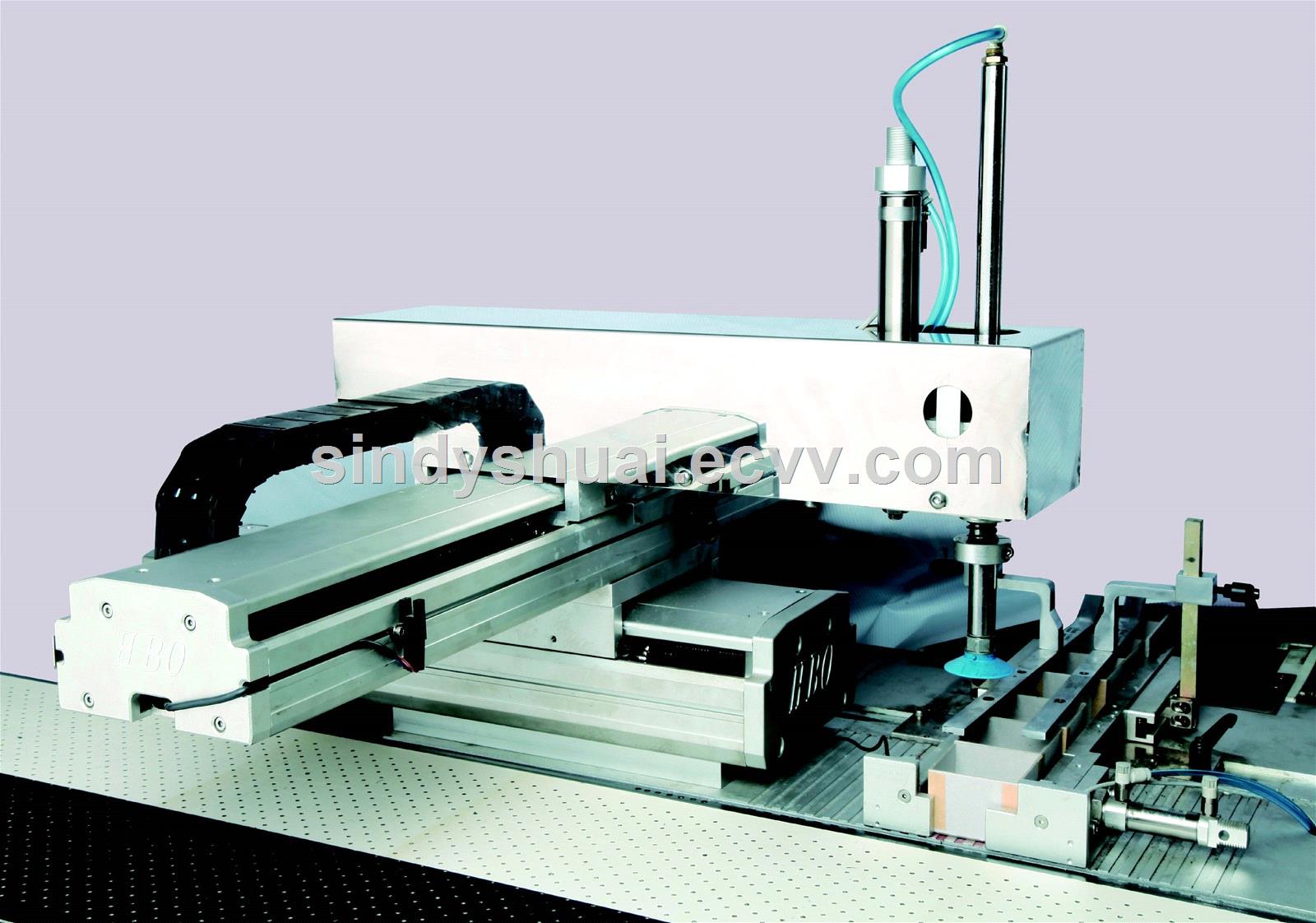

9. Spotter by camera tracing system and hydraulic pneumatic Rectifying system to spot correctly (spotting accuracy ±0.05mm);
10. Wrapper can automatically and continually deliver box, Wrap paper, fold corner edge, fold in and form box;
11. Automatic control system for glue viscosity(optional).
Model |
HM-ZD2418 | |
Paper Sheet Size (B=Length, A=Width) |
B ( Max.) |
450mm |
B ( Min.) |
110mm | |
A ( Max.) |
305mm | |
A ( Min.) |
45mm | |
Finished Box Size (L=Length W=Width H=Height T=Thickness) |
L ( Max.) |
240mm |
L ( Min.) |
45mm | |
W ( Max.) |
160mm | |
W ( Min.) |
35mm | |
H ( Max.) |
80mm | |
H ( Min.) |
10mm | |
Greyboard Thickness (T) |
T ( Max.) |
3mm |
T ( Min.) |
0.5mm | |
Paper Thickness |
Thickness Range |
80-160gsm |
Folding-in Depth (R) |
R |
8-80mm |
Paper Corner Edge (E) |
E |
10-100mm |
Speed |
15-40pcs/min | |
Voltage |
AC380V | |
Power |
20kW | |
Net Weight |
4000kg | |
Machine Dimension |
4500mmx4000mmx3000mm | |
