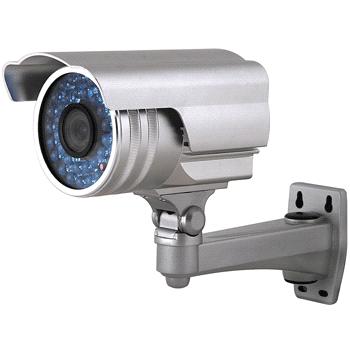

IR LED Varifocal Waterproof Camera

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Place of Origin:	Guangdong in China

Specifications

SY-IR5060CMW series

IR LED VARIFOCAL WATERPROOF CAMERA
Model No.	SY-IR5063CMW,1/4" SHARP COLOR CCD, 420TV Lines
	SY-IR5062CMW,1/3" SHARP COLOR CCD, 420TV Lines
	SY-IR5061CMW,1/4" SONY COLOR CCD, 420TV Lines
	SY-IR5060CMW,1/3" SONY COLOR CCD, 420TV Lines
	SY-IR5060CMHW,1/3" SONY COLOR CCD, 480TV Lines
	SY-IR5065CMHW,1/3" SONY COLOR CCD, 550TV Lines
Number of Pixels	420TV Lines:NTSC:510(H)x492(V); PAL:500(H)x582(V)
	480TV Lines:NTSC:768(H)x494(V); PAL:752(H)x582(V)
	550TV Lines:NTSC:811(H)x508(V); PAL:795(H)x596(V)
Scanning System	NTSC:525 Lines,60 Field/sec,
Scanning System	PAL:625 Lines 50 Field/sec
Sync System	Internal Synchronization
Gamma Characterlstic	0.45
S/N Ratio	more than 48dB(AGC Off)
Electronic Shutter Time	On: NTSC 1/60~1/100,000Sec,PAL 1/50~1/100,000Sec;
Electronic Shutter Time	Off: NTSC 1/60 Sec, PAL 1/50 Sec
Minimum Illumination	0 lux with built-in IR LED
IR LED	36 IR LEDs (?8mm)
IR project distance	50 meters
IR Status	Under 10 Lux by CDS
IR Power On	CDS Auto Control
Lens	4-9 mm Manual Varifocal Lens
Video Output	1.0Vp-p 75 ohm
Gain Control(AGC)	Auto
Water resistance	IP66
Operation Temperature	-10C~ +50C RH95% MAX
Storage Temperature	-20C~ +60C RH95% MAX
Power Supply	DC12V+_10%,550mA
Dimension	150(L) x 100(W) x 95(H)mm
Case	Silver White
