Qingdao Elite Machinery Manufacture Co.,Ltd.
China Manufacturer with main products: Pneumatic valve, Angle seat valve, Shuttle valve, ball valve, butterfly valve, strainer, check valve, quick coupling, pipe fitting, die... |

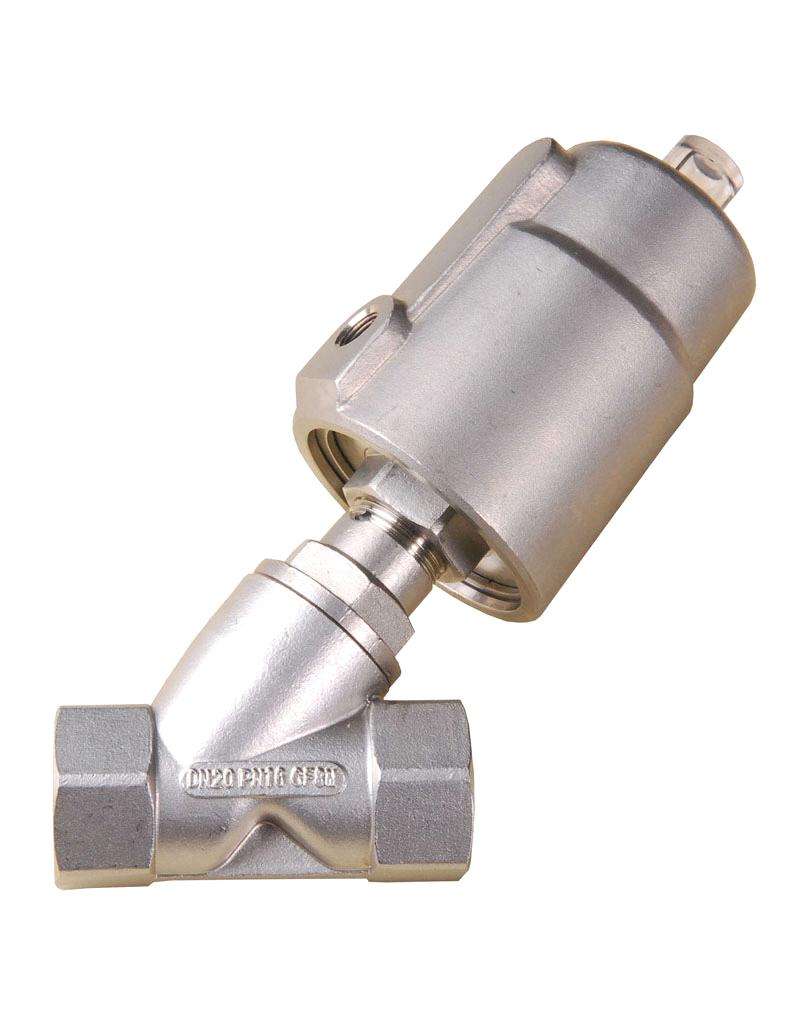

Piston actuated valve
| Supply Ability: | 10,000 Set/Sets per Month |
|---|---|
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union |
| Place of Origin: | Shandong in China |
|---|---|
| Packaging Details: | Carton packing and pallet for delivery |
Specifications
Advantages: Easy installation, maintenance-free, super long life; Reliable operation, self-adjusting stem seals, cylinder can be 360?otated free; Anti-corrosive, high flow rate, low fluid resistance, no water-hammer; Optical position indication, low control air consumption.
?Control Type: single acting (NO/NC) Size: DN10 ~ DN65 (3/8" ~ 2-1/2") Connection: BSP or NPT threaded Actuator Size: 40mm, 50mm, 63mm, 90mm Body Material: CF8M (AISI 316) or CF8 (AISI304) Actuator: CF8 (AISI304) Seat: Teflon (PTFE) Applicable Fluid: water, alcohol, oil, fuel, steam, neutral gas or liquid, organic solvent, acid and lye Fluid Pressure: Max. 1.6MPa (16 bar, 232Psi) Fluid Temperature: -10 - +200oC Max. Viscosity: 600 mm2/s Control Fluid: neutral gas, air Control Pressure: 0.3 - 0.8MPa Ambient Temperature: 0 - +80oC Options: solenoid valve, smart positioner, limit switch, stroke limitation, manual override
Angle Valve from this supplier
Min Order: 1 Set
FOB Price: 15.00-50.00 USD/Piece
Min Order: 50 Pieces
FOB Price: 0.10-1.50 USD/Piece
Min Order: 500 Pieces
FOB Price: 1.00-800.00 USD/Piece
Min Order: 1 Piece
