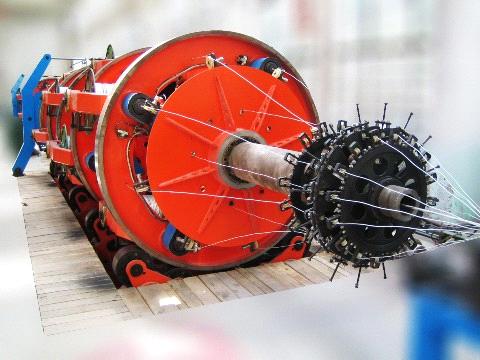

OPGW stranding line

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Place of Origin:	Anhui in China
Packaging Details:	wood box

Specifications

2. Line configuration

2.1 PN1600 driven pay off stand (with driving pay-off function)                                 1

2.2 Core wire tension control device                                                     1

2.3 Ф630 double wheel tension                                                                        1

2.3 8(16) reels planetary cages                                                             each    1

2.4 Wires forming die stands                                                      each  1

2.5 Length metering device                                                                    1

2.6 Electronic meter counter                                                                  1

2.7 Ф2000 double capstan machine                                                      1

2.8 Ф2000 suspend beam driven take-up stand                                                1

2.9 Ground shaft transmitting system                                                   1

2.10 Electric control system                                                                  1

2.11 Safety guard cover                                                                                     1

3. Line main technical specifications

3.1 Stranding wire diameter             Ф2mm-Ф6mm

                                   (Steel wire dia. Ф1mm-Ф3.5mm)

3.2 Max. Stranding diameter             Ф30mm

3.3 cages speed                                8 reels 60 rpm P=90mm

                                                   16 reels 50 rpm P=120mm

3.4 Cage rotate speed (Max.)             70rpm

3.5 Stranding pitch                            85mm-1000mm

3.6 Producing speed                          5 m/min

3.7 Centre height                                1000 mm

3.8 Normal brake time                         15 seconds

3.9 Emergency brake time                    less than 10s
