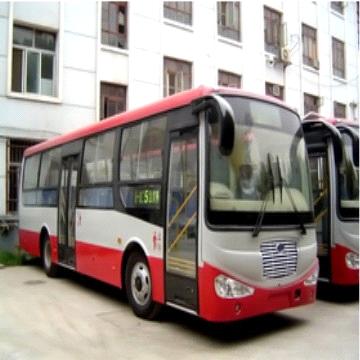

CNG bus

Inquiry Now

Specifications

The specification of the bus

Model	LS6103B（EFI）	LS6103B（CNG）
Overall Dimension L×W×H（mm）	10360×2490×3080	10360×2490×3080
Interior Height（mm）	2080	2080
Wheelbase（mm）	5000	5000
Tread Front/Rear（mm）	1900/1770	1900/1770
Overhang Front/Rear（mm）	2110/3250	2110/3250
Approach/Departure Angle（°）	10/9	10/9
Total Mass（Kg）	12200	12200
Kerb Mass（Kg）	7615	8000
Model of Chassis	CA6980D85-6	CA6980D85-3
Type	The Class Ⅲ Chassis	The Class Ⅲ Chassis
Engine model	CA6102B6	CA6102N2
Engine manufacturer	FAW	FAW
Max Power (Kw/r/min)	108/3000	91/3000
Max. Torque (Nm/r/min)	385/1200—1400	335/1200—1400
Mass Spread (Km/h)	80	75
Gas consumption（m³/100Km）	30	29
Rated loading capacity（including drivers）	65/32	60/32
