China Manufacturer with main products: We provide all kinds of crushers, dryers, mills, screens, and feeders. |
Related products from verified members
| Place of Origin: | Henan in China |
|---|
Specifications

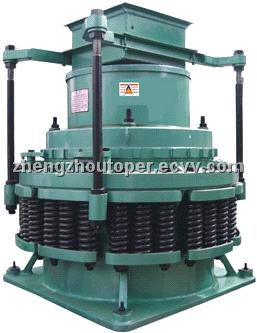

This series of crusher is used for crushing various ores and rocks with medium or high hardness. The advantages are reliable structure, high efficiency, easy-to-adjust and economical. The safety spring system is the overload protection device, which makes foreign material goes through the machine without bringing any hurt to it. The sealing modes are oil and water, which separate the stone powder and lubricating system. The crushing chamber is decided by the purpose of ore. The standard model is suitable for medium crushing, the medium model is suitable for medium and fine crushing and the short head model is suitable for fine crushing.
Zhengzhou Toper Cone Crusher PYB-600
Diameter of crushing cone(mm):600
Max. feeding size(mm):65
Width of discharge opening(mm):12-25
Processing capacity(t/h):40
motor power(kw):30
Swing frequency of main shaft(r/min):356
Weight(t):5
Dimensions(L*W*H):2234*1370*1675
Zhengzhou Toper Cone Crusher PYD-600
Diameter of crushing cone(mm):600
Max. feeding size(mm):35
Width of discharge opening(mm):3-13
Processing capacity(t/h):12-23
motor power(kw):30
Swing frequency of main shaft(r/min):356
Weight(t):5.5
Dimensions(L*W*H):2234*1370*1675
Zhengzhou Toper Cone Crusher PYB-900
Diameter of crushing cone(mm):900
Max. feeding size(mm):115
Width of discharge opening(mm):15-50
Processing capacity(t/h):50-90
motor power(kw):55
Swing frequency of main shaft(r/min):333
Weight(t):11.2
Dimensions(L*W*H):2692*1640*2350
Zhengzhou Toper Cone Crusher PYZ-900
Diameter of crushing cone(mm):900
Max. feeding size(mm):60
Width of discharge opening(mm):5-20
Processing capacity(t/h):20-65
motor power(kw):55
Swing frequency of main shaft(r/min):333
Weight(t):11.2
Dimensions(L*W*H):2692*1640*2350
Zhengzhou Toper Cone Crusher PYB-1200
Diameter of crushing cone(mm):1200
Max. feeding size(mm):145
Width of discharge opening(mm):20-50
Processing capacity(t/h):110-168
motor power(kw):110
Swing frequency of main shaft(r/min):300
Weight(t):24.7
Dimensions(L*W*H):2790*1878*2844
Zhengzhou Toper Cone Crusher PYZ-1200
Diameter of crushing cone(mm):1200
Max. feeding size(mm):100
Width of discharge opening(mm):8-25
Processing capacity(t/h):42-135
motor power(kw):110
Swing frequency of main shaft(r/min):300
Weight(t):25
Dimensions(L*W*H):2790*1878*2844
Zhengzhou Toper Cone Crusher PYB-1750
Diameter of crushing cone(mm):1750
Max. feeding size(mm):215
Width of discharge opening(mm):25-50
Processing capacity(t/h):280-480
motor power(kw):160
Swing frequency of main shaft(r/min):245
Weight(t):50.3
Dimensions(L*W*H):3910*2894*3809
Zhengzhou Toper Cone Crusher PYZ-1750
Diameter of crushing cone(mm):1750
Max. feeding size(mm):185
Width of discharge opening(mm):10-30
Processing capacity(t/h):115-320
motor power(kw):160
Swing frequency of main shaft(r/min):245
Weight(t):50.3
Dimensions(L*W*H):3910*2894*3809
Zhengzhou Toper Cone Crusher PYD-1750
Diameter of crushing cone(mm):1750
Max. feeding size(mm):85
Width of discharge opening(mm):5-13
Processing capacity(t/h):75-230
motor power(kw):160
Swing frequency of main shaft(r/min):245
Weight(t):50.2
Dimensions(L*W*H):3910*2894*3809
Zhengzhou Toper Cone Crusher PYB-2200
Diameter of crushing cone(mm):2200
Max. feeding size(mm):300
Width of discharge opening(mm):30-60
Processing capacity(t/h):59-1000
motor power(kw):280-260
Swing frequency of main shaft(r/min):220
Weight(t):80
Dimensions(L*W*H):4622*3302*4470
Zhengzhou Toper Cone Crusher PYD-2200
Diameter of crushing cone(mm):2200
Max. feeding size(mm):100
Width of discharge opening(mm):5-15
Processing capacity(t/h):120-340
motor power(kw):280-260
Swing frequency of main shaft(r/min):220
Weight(t):81.4
Dimensions(L*W*H):4622*3302*4470
