I. Uses

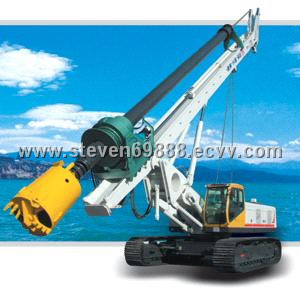

HONGDA HDR200 All-hydraulic Rotary Drilling Rig is an efficient drilling rig in large-caliber pile foundation projects, such as the base construction of railway bridges, road bridges, public works bridges and large buildings.
HONGDA HDR200 All-hydraulic Rotary Drilling Rig is an efficient drilling rig in large-caliber pile foundation projects, such as the base construction of railway bridges, road bridges, public works bridges and large buildings.
II. Main technical parameters
|
Total Machine |
| |
|
Overall Dimension (At Work) |
m |
10.5×4.3×20.6 |
|
In Transportation |
m |
15.5×3.2×3.45 |
|
Total Weight |
T |
65 |
|
Total Weight in Transportation |
T |
55 |
|
Telescopic Chassis |
| |
|
Max. Traveling Speed |
km/h |
1.5 |
|
Max. Grade Ability |
% |
40 |
|
Min. Ground Clearance |
mm |
468 |
|
Diesel Engine |
| |
|
Model |
Cummins M11-C330 | |
|
Rated Power |
kw |
246 |
|
Rated Rotating Speed |
rpm |
2100 |
|
Fuel Tank Volume |
L |
450 |
|
Hydraulic System |
| |
|
Hydraulic Oil Pump Flow |
L/min |
210×2+90 |
|
Rated Working Pressure |
Mpa |
30 |
|
Hydraulic Oil Tank Volume |
L |
800 |
|
Main Windlass |
| |
|
Max. Lifting Capacity |
KN |
210 |
|
Steel Rope Diameter |
mm |
28 |
|
Max. Lifting Speed |
m/min |
76 |
|
Steel Rope Length |
m |
90 |
|
Assistant Windlass |
|
|
|
Max. Lifting Capacity |
KN |
98 |
|
Steel Rope Diameter |
mm |
20 |
|
Max. Lifting Speed |
m/min |
60 |
|
Drill Head |
| |
|
Rotary Torque |
KNm |
200 |
|
Max Drilling Depth |
m |
60 |
|
Drilling Speed |
rpm |
0～25 |
|
Earth-throwing-out Speed |
rpm |
110 |
|
Max. Drilling Hole Diameter
-With Bushing |
mm |
1500 |
|
-Without Bushing |
mm |
2000 |
|
Compression System |
| |
|
Oil Cylinder Stroke |
mm |
5000 |
|
Max. Force Added |
KN |
180 |
|
Max. Pulling Force |
KN |
200 |
|
Telescopic Drill Pipe |
| |
|
Friction Mode Drill Pipe (Max. Depth) |
m |
5×13（60） |
|
Inner-locking mode (Max. Depth) |
m |
4×13（47） |
|
Working Arm Obliquity |
| |
|
Front |
° |
5 |
|
Rear |
° |
15 |
|
Left & Right |
° |
±5 |
|
Rotating Platform |
|
|
|
Rotating Degree |
° |
360 |
|
Rotating Speed |
r/min |
2.5 |
III. Main Configuration:
1. Engine—Originally-imported AMRICA CUMMINGS M11-C330 type.
2. Hydraulic Parts---Originally-imported GERMANY REXROTH (the machine’s all hydraulic pump, hydraulic motor, hydraulic valve).
3. Chassis Parts—From ITALY BERCO S.P.A. (including caterpillar assembly, driving roller, guiding roller, track roller, carrier roller, etc.).
4. Power Head—Main body from SHANGHAI SAIDA TRANSMISSION EQUIPMENT COMPANY, equipped with ITALY BREVINI double speed reducer and with GERMANY REXROTH variable hydraulic motor.
5. Main and Assistant Windlass—From GERMANY REXROTH COMPANY(BEIJING) (including reducer and drum, equipped with imported REXROTH variable hydraulic motor).
6. Walking Reducer—From GERMANY REXROTH (BEIJING)( equipped with imported REXROTH quantitative hydraulic motor).
7. Slewing Reducer—From GERMANY REXROTH (BEIJING)( equipped with imported REXROTH quantitative hydraulic motor).
8. Slewing Bearing—XUZHOU ROTHE ERDE SLEWING BEARING CO.,LTD.
9. Hydraulic Oil Cylinder—SICHUAN CHANGJIANG HYDRAULIC PART CO.,LTD.
10. Drilling Pipe—5×13 frictional drilling pipe from JIANGSU HENGTONG MACHINERY MANUFACTRUE CO.,LTD.
11. Drilling Tool—Allocated with barrel drilling head F800 and F1200 one per type from HEBEI LANGFANG PROSPECTING MACHINERY INSTITUTE.
12. Electric Control System—Originally-imported piling rig controller, indicator, and sensor from GERMANY REXROTH, other electric appliance parts like relay from FRANCE SCHNEIT.
13. Hydraulic Tube Parts—Hydraulic hose from MANULI and hose connector from EMB.
14. Air Filter Cleaner—From SHANGHAI FLEETGUARD AIR CLEANER CO.,LTD.
15. Noise Reducer—From SHANGHAI XIANHUA INTERNAL COMBUSTION ENGINE FITTING FACTORY.
16. Water Tank—QINGDAO AUTOMOBILE RADIATOR GENERAL COMPANY.
17. Hydraulic Oil Radiator—HENAN YUXIN VEHICLE AIR-CONDITIONER CO.,LTD.
18. Air-conditioning System-- HENAN YUXIN VEHICLE AIR-CONDITIONER CO.,LTD.
1. Engine—Originally-imported AMRICA CUMMINGS M11-C330 type.
2. Hydraulic Parts---Originally-imported GERMANY REXROTH (the machine’s all hydraulic pump, hydraulic motor, hydraulic valve).
3. Chassis Parts—From ITALY BERCO S.P.A. (including caterpillar assembly, driving roller, guiding roller, track roller, carrier roller, etc.).
4. Power Head—Main body from SHANGHAI SAIDA TRANSMISSION EQUIPMENT COMPANY, equipped with ITALY BREVINI double speed reducer and with GERMANY REXROTH variable hydraulic motor.
5. Main and Assistant Windlass—From GERMANY REXROTH COMPANY(BEIJING) (including reducer and drum, equipped with imported REXROTH variable hydraulic motor).
6. Walking Reducer—From GERMANY REXROTH (BEIJING)( equipped with imported REXROTH quantitative hydraulic motor).
7. Slewing Reducer—From GERMANY REXROTH (BEIJING)( equipped with imported REXROTH quantitative hydraulic motor).
8. Slewing Bearing—XUZHOU ROTHE ERDE SLEWING BEARING CO.,LTD.
9. Hydraulic Oil Cylinder—SICHUAN CHANGJIANG HYDRAULIC PART CO.,LTD.
10. Drilling Pipe—5×13 frictional drilling pipe from JIANGSU HENGTONG MACHINERY MANUFACTRUE CO.,LTD.
11. Drilling Tool—Allocated with barrel drilling head F800 and F1200 one per type from HEBEI LANGFANG PROSPECTING MACHINERY INSTITUTE.
12. Electric Control System—Originally-imported piling rig controller, indicator, and sensor from GERMANY REXROTH, other electric appliance parts like relay from FRANCE SCHNEIT.
13. Hydraulic Tube Parts—Hydraulic hose from MANULI and hose connector from EMB.
14. Air Filter Cleaner—From SHANGHAI FLEETGUARD AIR CLEANER CO.,LTD.
15. Noise Reducer—From SHANGHAI XIANHUA INTERNAL COMBUSTION ENGINE FITTING FACTORY.
16. Water Tank—QINGDAO AUTOMOBILE RADIATOR GENERAL COMPANY.
17. Hydraulic Oil Radiator—HENAN YUXIN VEHICLE AIR-CONDITIONER CO.,LTD.
18. Air-conditioning System-- HENAN YUXIN VEHICLE AIR-CONDITIONER CO.,LTD.
