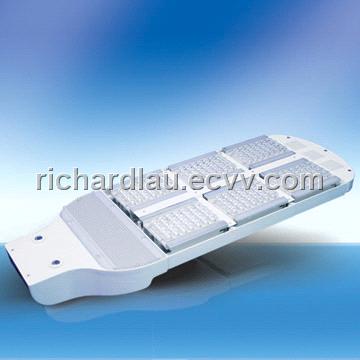

LED street light BBE LU6

FOB Price:	600.00 - 700.00 USD/Piece
Supply Ability:	100,000 Piece/Pieces per Month
Shipping:	depends on QTY
Payment Terms:	L/C, T/T(Bank Transfer), Western Union

In Stock

Inquiry Now

Related products from verified members

led light

Price:

Min. Order:
120W LED Street Lamp Light

Price:300.00-400.00 USD/Piece

Min. Order:100 Pieces
LED street lamp

Price:

Min. Order:
LED streat lights lens

Price:

Min. Order:
36W LED solar street light

Price:

Min. Order:

Product Details

Place of Origin:	Guangdong in China
Packaging Details:	paper carton

Specifications

Model Number	LU6
Input Voltage	85-264VAC
Frequency Range	47~63Hz
Power Factor(PF)	＞0.9
Total Harmonic Distortion ( THD)	＜20%
Power Efficiency	85%
Working Voltage	24VDC
LED Consumption	168W
Power Supply Consumption	30W
LED Luminous Efficiency	≥80lm/w
LED Initial Flux	15,000lm (Tj=25℃)
LED Maintain Flux	14,000lm(Tj=60℃,Ta=25℃)
Lamp’s Flux	12,600lm(Tj=60℃,Ta=25℃)
Lamp’s Efficiency (%)	＞90%
Illumination (E)	(Height=6m)≥80Lux (Replace Sodium light of 200Lux) (Height=8m) ≥45Lux (Replace Sodium light of 113LuxX) (Height=10m) ≥28Lux (Replace sodium light of 70Lux) (Height=12m) ≥20Lux (Replace sodium light of 50Lux)
Effective Illuminated Area	(Height=6m): 20 x 8m (Height=8m): 26 x 10m (Height=10m): 33 x 13m (Height=12m): 40 x 16m
Color Temperature	Pure White: 5,000~7,000K; Warm White :3,000~4,000K
Color Index(CRI)	Ra＞75
Light Source	BBE Emitter (1Watt)
Light Distribution Curve/Beam Pattern	Asymmetric (Bat Wing)/ Rectangular Beam
The Highest Light Intensity Angle	120°:The Horizontal Axis:110°, The Vertical Axis:45°; 140°:The Horizontal Axis:130, The Vertical Axis:45°
Beam Angle	120°:The Horizontal Axis:110°, The Vertical Axis:45°; 140°:The Horizontal Axis:130, °The Vertical Axis:45°
Junction Temperature(Tj)	60 ℃ ±10 %( Ta=25℃)
System Resistance (Rja)	0.19°C/W
Working Temperature	-30 ~ 50
Working Humidity	10%~90%
Storage Temperature	10 ~85
Working Life	50,000 Hrs
Light Body& Lampshade	Aluminum Alloy and PC
The Dimensions(Units:mm)	890(L) x 315(W) x 90(H)
Net Weight	13 Kgs
IP Rating	IP65
Packing	1 pc /Carton
Carton Size	960 x 400 x 205 mm
Container Q’ty (pcs)	20’Q: 352 pcs 40’Q: 715 pcs, 40’HQ: 845 pcs
