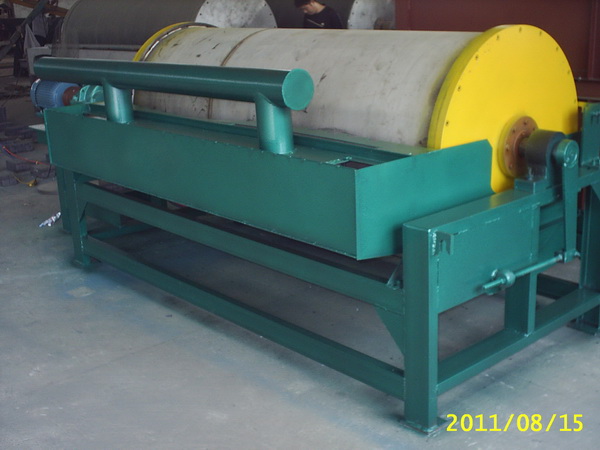

NCT Wet Drum Magnetic Separator

FOB Price:	11,000.00 - 15,000.00 USD/Set
Supply Ability:	50 Set/Sets per Month
Shipping:	Within 20 days after receiving 30% payment in advance by T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China
Packaging Details:	Without packing if no requirement

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1YEAR
Weight: 4000KG
Dimension(L*W*H): 3700X1650X1650
Power(W): 5.5KW
Voltage: 380v
Model Number: NCT1018
Brand Name: MAS MAGNETICS
Production Capacity: 160-180m3
Type: Magnetic Separator
Condition: New

Specifications

NCT Wet Drum Magnetic Separator

Brief

NCT series are mainly used for the dewatering operation after concentrating from CTB. Instead of the traditional deposit pond,

this series can thicken the density concentrates from20%~25% to 50%~65% above at once. Recovery of magnetic iron may
reach above 99.5% The moisture content can be reduced greatly to enhance the efficiency of following filtrating equipments
greatly.

Technology Data( Only for reference)

Model	NCT1230	NCT1224	NCT1024	NCT1021	NCT1018	NCT1015
Drum Spec (mm)	1200x3000	1200x2400	1000x2400	1000x2100	1000x1800	1000X1500
Drum Speed (rpm)	19	19	19	19	19	19
Magnetic intensity (MT)	Average≥170 Strong magnetic zone ≥220
Working Space (mm)	40-70	40-70	40-70	40-70	40-70	40-70
Handling Capacity (m3 /h)	240-350	170-260	210-240	180-210	160-180	140-150
Power (Kw)	11	7.5	5.5	5.5	4	4
External Dimension (mm)	4840×1850× 1850	3940×1850× 1850	4220×1650× 1650	3920×1650× 1650	3620×1650× 1650	3320X1650 X1650
Overall weight (Kg)	7200	6000	6450	5500	5000	4500
