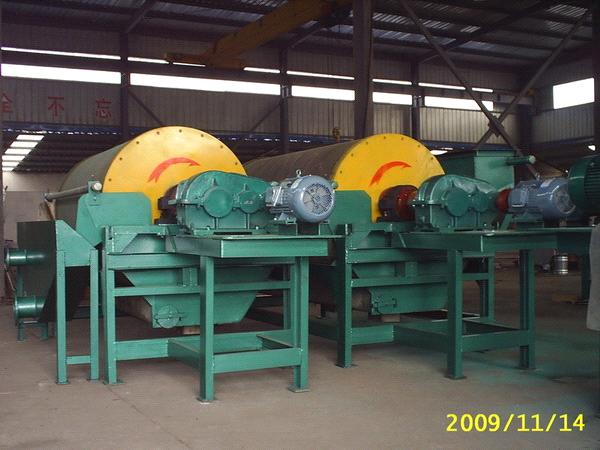

CTB Wet Drum Magnetic Separator

FOB Price:	11,000.00 - 12,000.00 USD/Set
Supply Ability:	50 Set/Sets per Month
Shipping:	Within 20 days after receiving 30% payment in advance by T/T
Payment Terms:	L/C, T/T

In Stock

Inquiry Now

Related products from verified members

Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Anhui in China
Packaging Details:	without packing if no requirement

Quick Details

After-sales Service Provided: Engineers available to service machinery overseas
Warranty: 1 YEAR
Weight: 3500KG
Dimension(L*W*H): 3200X1500X1700
Power(W): 4KW
Voltage: 380v
Model Number: CTB1230
Brand Name: MAS MAGNETICS
Production Capacity: 150T/H
Type: Magnetic Separator
Condition: New

Specifications

CTB Wet Drum Magnetic Separator

Brief

CT(B) series are mainly used for the purification cooperation for the coarse concentrates from dry magnetic separation
after different grinding stages, main application as follows:

1) Coarse separation after first ball mill. The intensity is about 2000-2400GS, rejecting tailings to enhance recycling and reduce
the cost of second ball mill

2) Concentration after second ball mill. The intensity is about 1500-1800GS, rejecting low grade minerals to enhance the grade
again.

3) Magnetic separation of iron sand from sea. The intensity is about 1000GS, rejecting the impurity to enhance the grade.

4) The clearance of ferrous minerals before strong magnetic working to prevent the magnetic block, such as iron removal
operation in the pre-separation for ceramic powder so on.

5)Recovery of ferrous minerals in coal dressing plant.

Technology Data( For reference only)

Model	Drum Spec (mm)	Magnetic Intensity (mT)	Feeding density(%)	Working Space (mm)	Common feeding Size (mm)			Handling Capacity		Power (kw)	External Dimension (mm)	Overall weight (kg)
Model	Drum Spec (mm)	Magnetic Intensity (mT)	Feeding density(%)	Working Space (mm)	CTS	CTN	CTB	Dry Ore (t/h)	Slurry(m3/h)	Power (kw)	External Dimension (mm)	Overall weight (kg)
CTB7512	750×1200	80~400	20-30	35-55	6-0	3-0	1-0	23-30	65-100	1.5	2270×1780×1600	2000
CTB7515	750×1500		20-30	35-55	6-0	3-0	1-0	30-40	90-130	2.2	3060×1780×1600	2200
CTB7518	750×1800		20-30	35-55	6-0	3-0	1-0	35-50	110-160	3	3350×1780×1600	2450
CTB1015	1050×1500		25-35	45-65	6-0	3-0	1-0	40-75	115-170	3	3180×2170×1830	3640
CTB1018	1050×1800		25-35	45-65	6-0	3-0	1-0	50-90	140-205	4	3440×2170×1830	4100
CTB1021	1050×2100		25-35	45-65	6-0	3-0	1-0	55-105	160-240	4	3750×2170×1830	4550
CTB1024	1050×2400		25-35	45-65	6-0	3-0	1-0	65-120	185-270	5.5	4174×2170×1830	5070
CTB1030	1050×3000		25-35	45-65	6-0	3-0	1-0	80-150	230-240	5.5	4714×2170×1830	6560
CTB1224	1200x2400		25-35	45-65	6-0	3-0	1-0	70-130	200-300	7.5	4141x2320x1980	6000
CTB1230	1200×3000		25-35	45-65	6-0	3-0	1-0	88-165	250-370	7.5	4714×2320×1980	7500
