Auto Girth SAW Welder Welding for Large Oil Storage Tank Or Blastfurnance

Payment Terms:	T/T

Inquiry Now

Related products from verified members

Special Saw Tips

Price:

Min. Order:
HSS Bi-Metal Hole Saws

Price:0.11-20.10 USD/Piece

Min. Order:1,000 Pieces
Huge Power Tower Shut & Welding Machine by ...

Price:150,000.00-160,000.00 USD/Set

Min. Order:1 Set
Portable Handheld Tools Manufacturer of Hydraul...

Price:1200.00 USD/Set

Min. Order:1 Set
Carbide Grout Saw Flc057

Price:

Min. Order:200 Pieces

Product Details

Export Markets:	Southeast Asia, Mid East
Place of Origin:	Liaoning in China

Quick Details

Type: Panel Saw
Material: Steel
Brand Name: SYU
cutting spee: 1
line spee: 1
After-sales Service Provided: Engineers available to service machinery overseas
Motor Type: AC Motor
Condition: New
thickness of plate to weld: 8-80mm

Specifications

Automatic Girth Welder

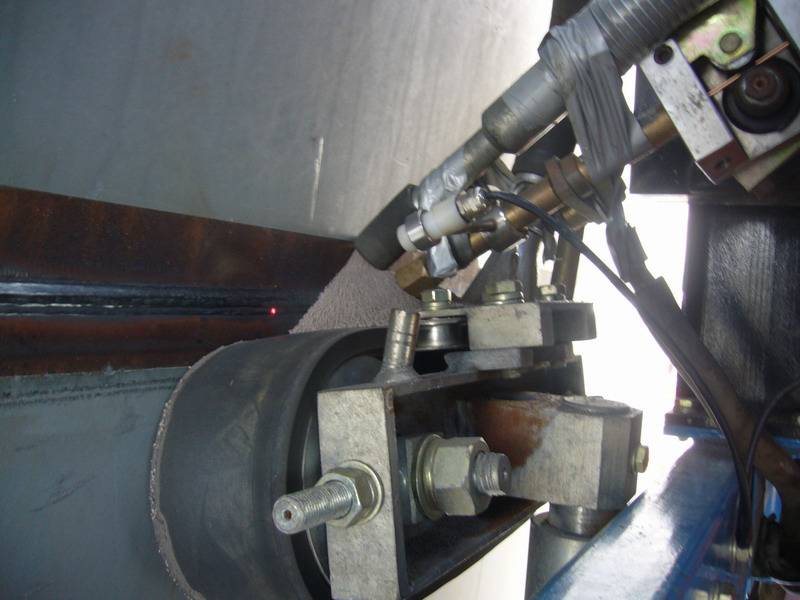

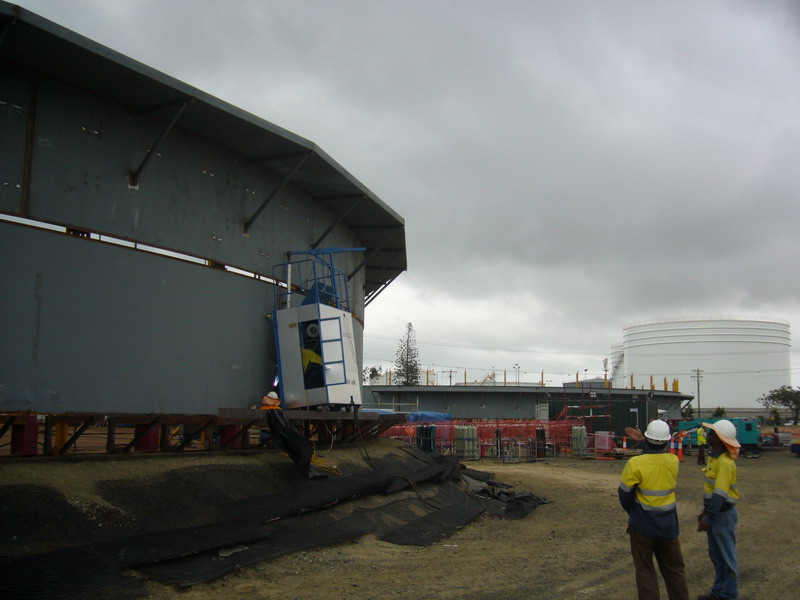

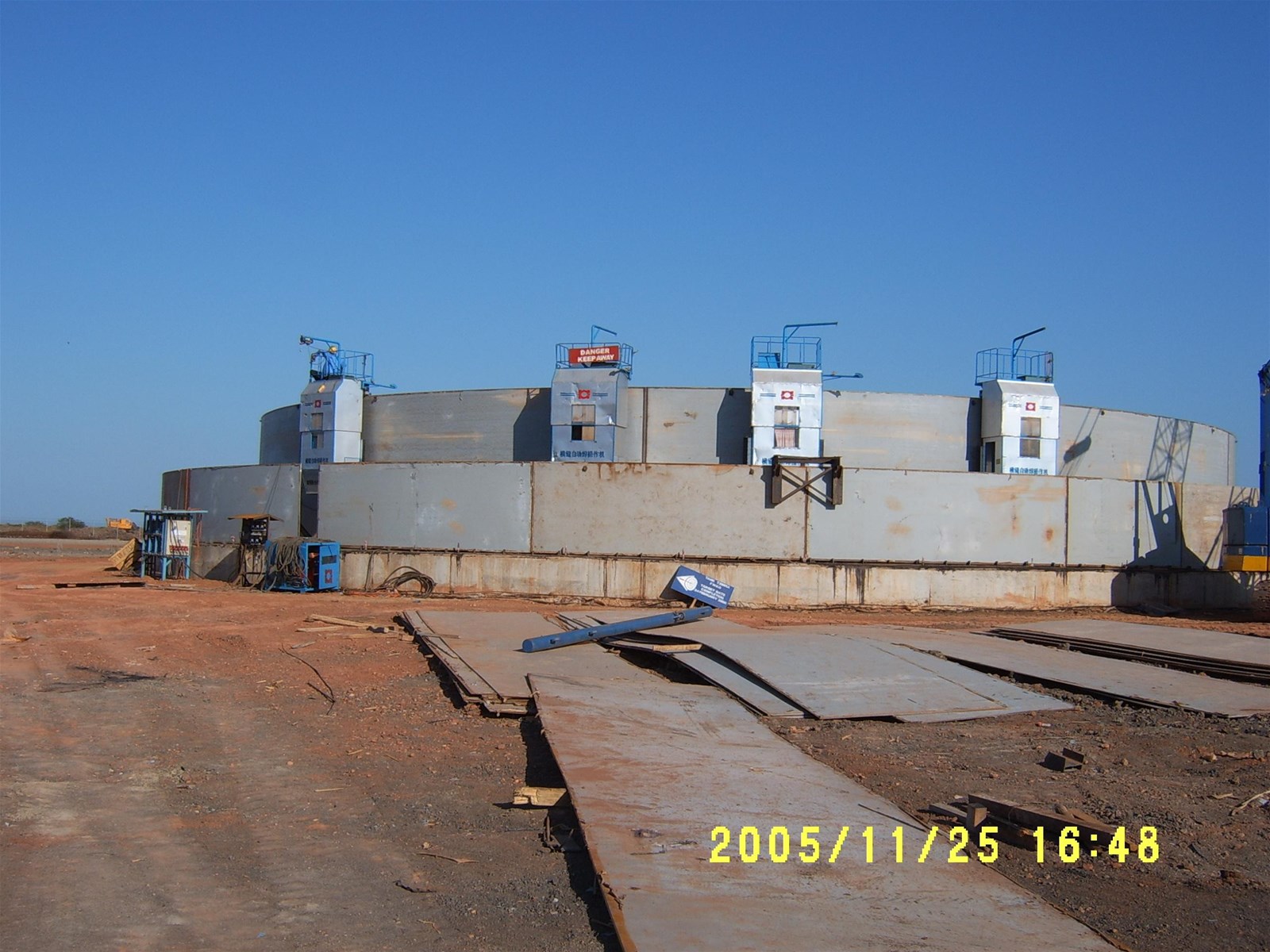

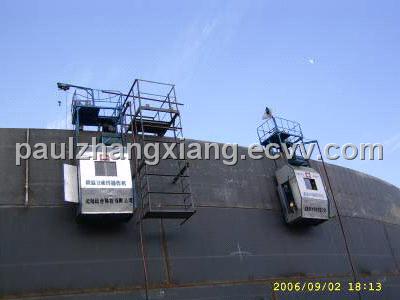

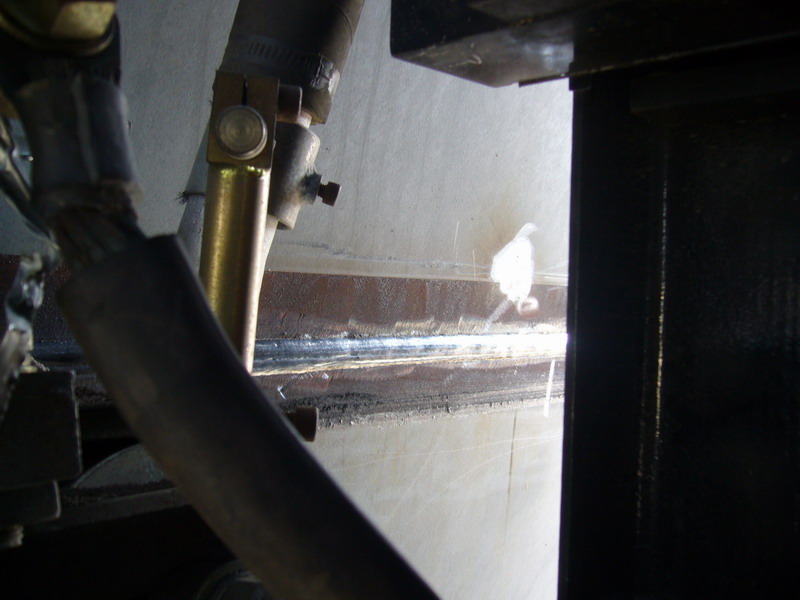

Automatic submerged arc weld of transverse seam machine(automatic grith welder):
the large tank,metallurgical blast furance and hot stove which have the large steel construction are made of plate,the joint form of main structure mostly is long linear weld,the construction project is huge,
but it is especially fit for automatic welding, conventional automatic welding technique hardly achieves the high efficient welding,automatic submerged arc weld of transverse seam machine is designed for the transverse level linear
Weld and girth weld,and it is especially suitable for level weld of cylinderical steel structure. Using combined with
Vertical position gas-electric welding machine,it is the ideal equipment of automatic welding of large steel structure
Such as oil tank and blask furnace.

Specification:
Travel speed: 100 to 2,900 mm/min
Plates handles: from 1.40 to 3.20 meters height. Long neck OPTIONAL (for handle up to 5.00 m height plates)
Plates thickness: from 8 to 50 mm
Tank diameters: from 5.00 meters and over
Arc voltage:24-36V
Welding speed 30-200CM/Min
Freedom of welding gun adjusting:3
Welding power source >600 A
auto girth SAW welder welding for large oil storage tank or blastfurnance

Shenyang welding automatic institute
