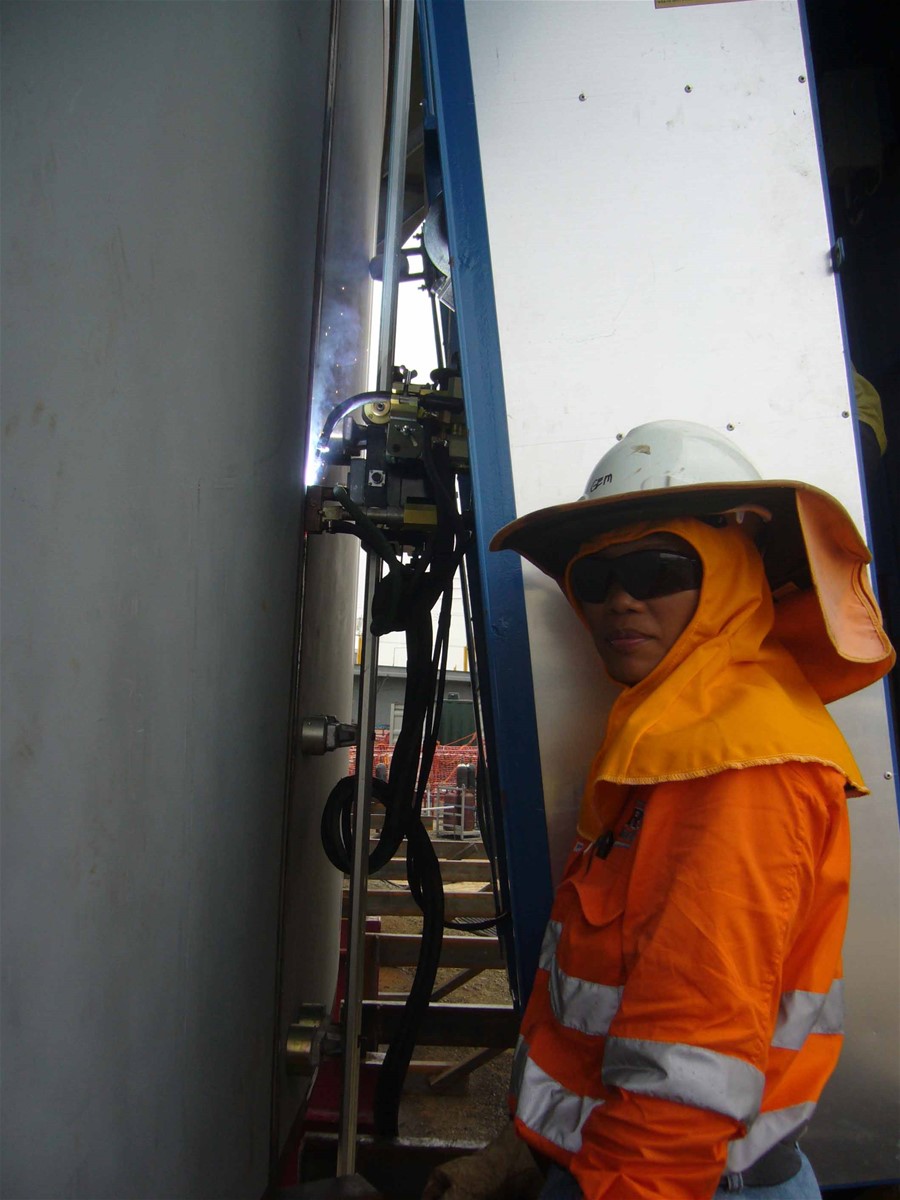

Verticlal Electrogas Welder for Welding the Vertical Joint of Large Storage Tank Automatically
Related products from verified members
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Liaoning in China |
Quick Details
- After-sales Service Provided: Engineers available to service machinery overseas
- Certification: CE
- Voltage: 380
- Dimensions: 1.1
- Brand Name: SYU
- Condition: New
Specifications
Vertical weld compatible with tank erection equipment.,mainly used in automatic welding worksite for large steel structure such as oil tank,hot-blast stove.
Vertical travel speed: 0 to 250 mm/min
Plates handles: from 1.40 to 3.20 meters height.
Plates thickness: from 8 to 50 mm Single side welding 32mm.?
Tank diameters: 5.00 meters and over
Regulates welding current through the feedback of arcVoltage, and it adjusts wire stick out and welding head auto lifting by welding current feedback.
Applicable for " bottom to up" constructed storage tanks,Inside/outside welding
Suitable for tank diameter 5.00 m and over
Adjustable Wind Shielding Standard frame for tank shell plate 1.4 m to 3.2 m high
Front and back side are forced together after water cooling. FixedCeramic or water-cool cooper mat is applied at the back side, water-cool copper shoe is applied at the front side.
It use 100% CO2 gas shield and fluxCored wire or intershield flux cored wire.
Liquid surface of melting poolSelf-controllable, auto-traveling welding carriage and self-adjustable sitck out.
Adjustable dwell time on both sides to weld thicker plate.
Railof carriage is composed of semi-flex aluminum alloy structure and easy to release and fix.
Vertical welding carriage traveling speed: 0 ~ 250 mm/min Horizontal frame traveling speed: 500 mm/min.
