Chongqing Huijin Machinery & Electricity Co.,Ltd
China Manufacturer with main products: motorcycle, dirtbike, tricycle, atv, UTV |
Related products from verified members
| Place of Origin: | Chongqing in China |
|---|
Specifications

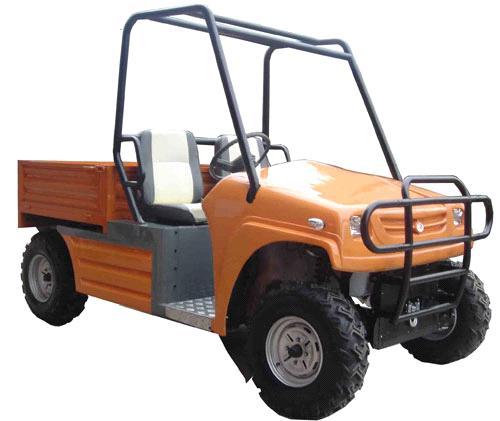

JF800UTV(diesel)
full specifications:
Engine: Diesel,aluminum body,V-twin,forced air-cool,4-stroke,BOSCH injector,800CC.
Bore x stroke: 86 x 72mm
Maximum power: 14kw/3000r/min 16/3600
Standard power: 15.0kw/3000r/min
Maximum torque: 52N.m/2600Nm/r/min
Compression radio: 19:1
Ignition type: CDI
Start: electric
Fuel tank capacity: 25L
Min.fuel consumption: 320g/Kw.h
Lubrication: forced,splashing, SAE-15W/30
Lube oil capacity: 1.7L
Battery: 12V60Ah Fuse: 30A
Head lamp: 12V 2x35W
Tail and brake lamp: 12V 2x5W
Side indicator lamp: 12V 2x5W
Frame: strong steel structure,electrophoresis against rust,auto painting
Body: strong fiberglass covers,auto painting
Suspension front: single strut type, independent, spring
Suspension rear: double torsion beam type, independent, spring
Brake: front and rear hydraulic disc brakes by right foot pedal
Clutch: by left foot pedal
Parking: hand brake
Turning system: rack and pinion
Transmission: shaft drive, 4MT
Front winch type : TDJ-A2500,electric,max.tow capacity 1134kg
Dashboard: auto speedometer, switchs assy, storage box
Dimension (L x W x H): 3160x1510x2000mm
Wheelbase: 2300mm
Wheel track: front 1510/rear 1500mm
Min.ground clearance: 260mm
Cargo bed (L x W x H): 1300x1380x360mm
Max. loading capacity: 840kg
Vehicle load capacity: 990kg
Max speed: 60km/h (limiting)
Tires: front AT25x8-12 and rear AT25x10-12
Climbing capacity: >30o
Max.noice: <70dB
Turning radius: 4000mm
Gross/Net weight: 520kg/440kg
Packing size: 2800 x 1550 x 1100 mm
Container quantity: 8units/40GP,14units/40HC in CKD(80% assembled)
Options: color, CD radio player, windshield, hard top cover, close cab, hydraulic cargo bed, snow shovel, 4x4 petrol engine.
