WENZHOU CHUTIAN IMP.& EXP.CO.,LTD

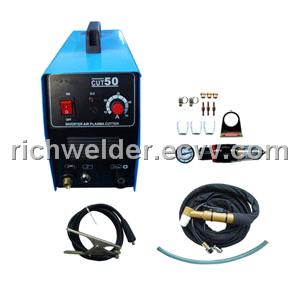

China Manufacturer with main products: Our leading products include Inverter TIG Welders, Inerter ARC (MMA) Welders, MIG Welders, BX Welder, Air Plasma Cutters and Welding... |
Related products from verified members
| Place of Origin: | Zhejiang in China |
|---|
Specifications
ItemData
|
CUT-30
|
CUT-40
|
CUT-50
|
|
Input power voltage
|
220V±10%
|
220V±10%
|
220V±10%
|
|
Frequency:
|
50/60Hz
|
50/60Hz
|
50/60Hz
|
|
Rented input power capacity
|
3.5KVA
|
4.9KVA
|
6.3KVA
|
|
Rate input current
|
15.9A
|
44.2A
|
28.7A
|
|
No-load voltage
|
220V
|
220V
|
225V
|
|
Current range
|
15 -30A
|
15 -40A
|
20 -50A
|
|
Rated output voltage
|
92V
|
96V
|
100V
|
|
Rated duty cycle
|
50%
|
50%
|
50%
|
|
No-load power
|
40W
|
40W
|
40W
|
|
Efficiency:
|
85%
|
85%
|
85%
|
|
Power factor
|
0.93
|
0.93
|
0.93
|
|
Insulation class
|
B
|
B
|
B
|
|
Protection class
|
IP21
|
IP21
|
IP21
|
|
Arc-starting
|
touch
|
touch
|
touch
|
|
Air pressure
|
0.4
|
0.4
|
0.4
|
|
Gas flow
|
80L/min
|
80L/min
|
80L/min
|
|
Max Thickness:
|
8mm
|
12mm
|
14 mm
|
|
Weight:
|
8kg
|
8.5kg
|
9kg
|
|
Dimensions
|
371 x 153 x 233mm
|
371 x 153 x 233mm
|
432 x 204 x 302mm |
