Specifications

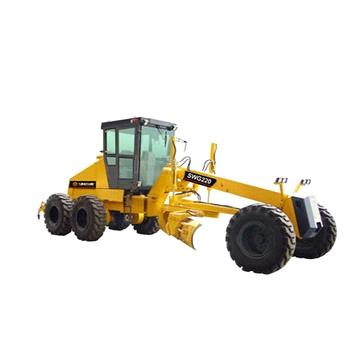

Below are the features of motor grader:
Model : SWG220-2
Operation weight :15000kg
Front axle capacity : 5150kg
load of Rear axle : 10850kg
Transmission box : power shift
Hydraulic system pressure: 18Mpa
Blade :
LxChord : 3965x610mm
Cycling angle: 360 degree
Max.depth ground 500mm
Max.inclined angle(left/right): 90 degree
Wheel base: 2150mm
Tire size: 17.5-25PR14
Tread: 6362mm
Travel speed :
1st gear(F): 5.2km/h
2nd gear: 7.9km/h
3rd gear: 11.78km/h
4th gear : 17.69km/h
5th gear: 24.81km/h
6th gear: 36.85km/h
1st gear(R) : 5.2km/h
2nd gear :11.78km/h
3rd gear: 24.81km/h
Max.drawbar pull : 108 Kn
Engine type: Cummins 6CT8.3
Rated output: 158kw
Max.torque: 769N.m/1500rpm
Service brake: Hydraulic disc brake
Steering: Hydraulic articulated
Overall dimension: 8585x2346x3340mm
If you have special demands, please send your detailed drawing to us.
