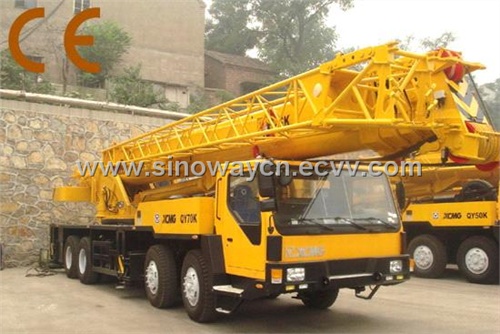

Sinoway Mobile Crane (QY70K)

Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Place of Origin:	Shanghai in China

Specifications

* Dead weight in travel state: 43 tons

* 1st 2nd axle load: 17000kg

* 3rd 4th 5th axle load: 26000kg

* Engine: STYRE

* Rated power: 266/220Kw(r/min)

* Mx. travel speed : 75km/h

* Min. turning diameter: 24000mm

* Min. ground clearance: 3270mm

* Approach angle: 19°

* Departure angle: 13°

* Brake distance(at 30km/h): 10000mm

* Max. Grade ability: 40%

* Fuel consumption of 100km: 45L

* Hydraulic system: Rexroth

* Max. rated lifting load: 70 tons

* Min. rated working radius: 3000mm

* Turning radius at swing table tail: 3550mm

* Max. load moment:

- Base boom: 2303Kn. m

- Full-extend boom: 1043Kn. m

* Outtrigger extension distance:

- Longitudinal/Lateral: 5750/6900mm

* Lifting height:

- Base boom: 11. 2m

- Full-extend boom: 42m

- Full-extend boom + jib: 58m

* Boom raising time: 60s

* Boom telescoping time:

- Full-extending /retracting: 165/165s

* Max. swing speed: 1. 6r/min

* Outtrigger telescoping time:

- Outrigger beam extending/retracting synchronously: 30/20s

- Outrigger jack extending/retracting synchronously: 35/12s

* Hoisting speed(single rope):

- Main winch with full load/no load: 75/130 m/min

- Auxiliary winch with full load/no load: 98/108 m/min

* Telescopic boom: 5-section oviform profile

* Overall dimensions: 13500x2800x3510mm
