Product Details

Export Markets:	North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Place of Origin:	Chongqing in China
Packaging Details:	1 piece / carton Carton size: 500 * 500 470 mm Weight: About 9 kgs

Specifications

BRIEF INTRODUCTION

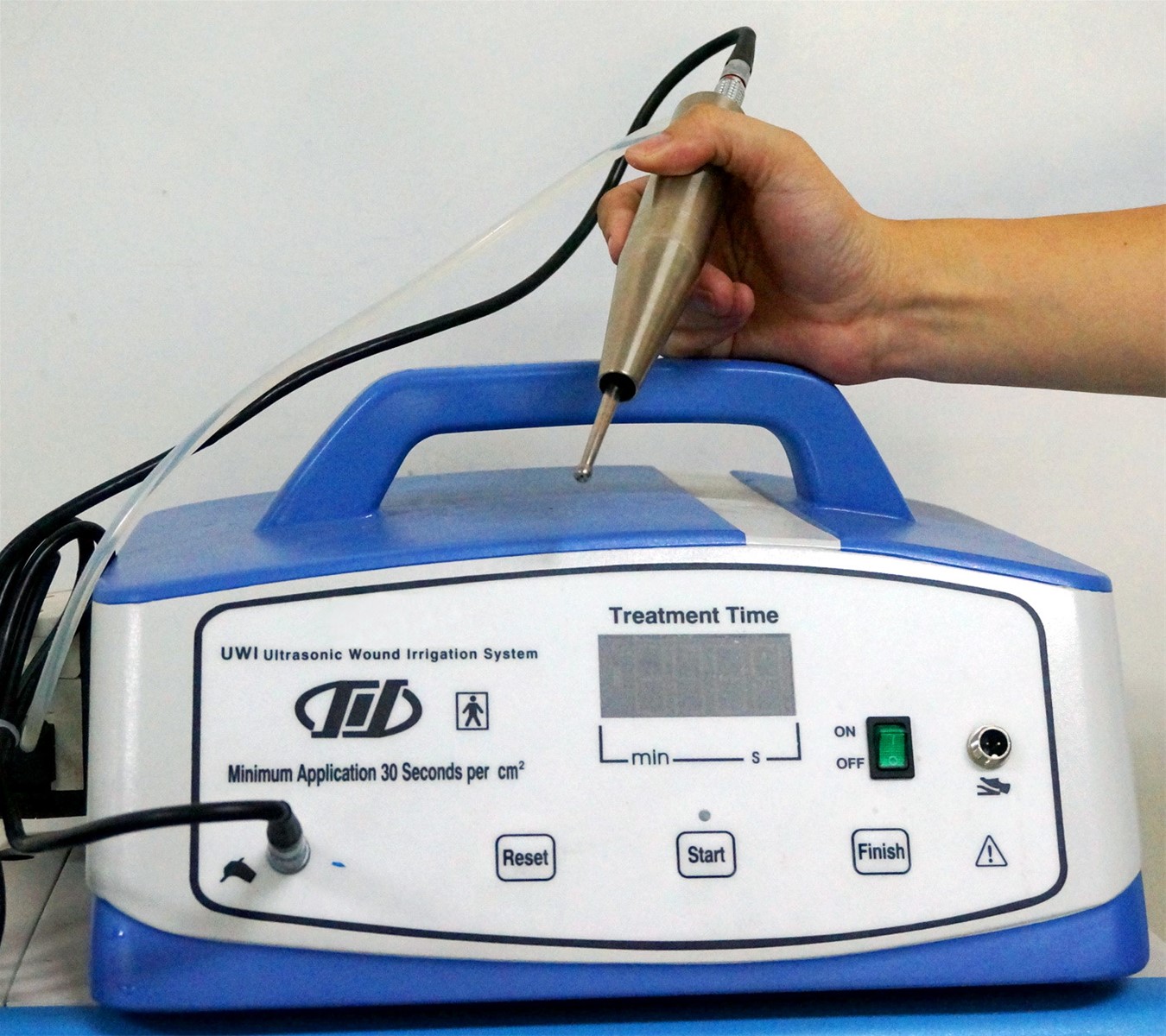

UWI-E debridement machine is an ultrasound device for wounds treatment, which generates 40Khz ultrasonic wave power and magnifies it through a transducer. the power is carried via the handle piece probe, and conducted to human tissue & work on the wounds through medical normal saline. the purpose is to fast remove the necrotic tissue, bacterium, debirs, fibrin slough, etc. from the wounds, and keep wounds surface fresh to promote wounds healing.

Model No: UWI-E
Certificate: CE
Patents:
China Sciential Property Right Invention Paten: ZL011084596
New Pattern Utility Patent: ZL042328484

Technical Parameters:
Host output power: 18-100Khz

Ultrasonic working frequency: 40 KHz±10 KHz. It can be automatically tracked.

Power consumption: < 200W

Output power: 15w

the maximum liquid flow: <200ML/MIN

Handle outer diameter: 32mm
Handpiece amplitude: 80-100micron meter

Working conditions

Power: a.c.100-240V AC, 50Hz/60HZ, not exceeding 250VA
Liquid temperature: 0-30℃
Working temperature: 0-40℃
Relative humidity: ≤80% RH
Atmospheric pressure: 860Pa - 1060kPa
Fuse: rated current F3.15AL250V 5*20mm
Timing: < 99m 59s.
Preset control time: 5min, error ≤2s.
Anti-Shock type: type I
Anti-shock level: BF
Foot pedal water-proof type: IPX1
External dimension: 300×360×145
Weight: 4.5KG.

Packing:
1 piece/cartong, size: 500*500*470mm, about 9kg
