PTCCTV Technology Co.,Ltd.
China Manufacturer with main products: H.264 stand-alone dvr, PC-based DVR card, embedded digital video recorder, video server, decoder, network camera, matrix, ATM DVR, IP server,... |

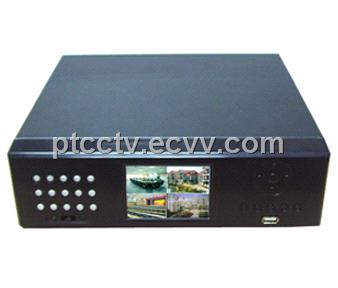

H.264 Standalone network DVR Built-in LCD
| Shipping: | 2-15days |
|---|---|
| Payment Terms: | L/C, T/T(Bank Transfer), Western Union, PayPal |
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|
Specifications
MINI LCD DVR
Suppot 500G HDD/50days recording
4Ch Realtime support CIF,HD1,VGA port
USB backup;Network;Motion Alarm
H.264 Standalone DVR Built-in 3.5”LCD
4Ch Real time support CIF,HD1
With Mouse; IR controller; VGA port
Support Max 500G HDD with 50days recording file
Support USB backup; Network; Alarm
|
Model |
PT-604N | ||
|
Compression |
H.264 | ||
|
Video processing chipset |
DSP processor | ||
|
Video |
input |
4ch BNC | |
|
output |
Monitor, LCD | ||
|
Resolution |
Display |
PAL：704X576；NTSC：704X480 | |
|
Recording |
PAL：704X288，352X288；NTSC：704X240，352X240 | ||
|
Compression |
H.264 | ||
|
Operation |
OS |
Linux OS | |
|
Mode |
Record, replay , preview ,back-up, network | ||
|
System operation |
Mouse, IR Controller | ||
|
Frame |
Recording |
4ch realtime recording | |
|
PAL：100（704X288），100（352X288）； NTSC：120（704X240），120（352X240） | |||
|
Recording frame rate from 1-25 (30) dynamic allocation frame | |||
|
Recording |
Recording mode |
continual, schedule, Motion, Alarm | |
|
Alarm |
Different channels, video delay: 30 seconds, 1-50 minutes. | ||
|
Alarm input/output |
4ch input,1ch output | ||
|
Playback |
Normal, Search |
multi-channel synchronous playback; fast forward: X4, X8, X16; quick retreat: X4, X8, X16 | |
|
Research Recording :All. Alarm, Motion, Time | |||
|
Hard Driver |
SATA port | ||
|
Network |
protocol |
10/100 Base-T TCP/IP,UDP,HTTP,NTP,DHCP,DDNS | |
|
network function |
IE remote monitoring, remote control, remote settings, PTZ remote control, remote playback | ||
|
PTZ |
RS485,Zoom,Control | ||
|
Backup |
USB | ||
|
Power supplier |
DC 12V，6.7A | ||
