Product Details

Place of Origin:	Zhejiang in China

Specifications

Terms of Payment: T/T

Supply Ability: 100000 Set/Sets per Year

Minimum Order: 1000 Set/Sets

Packaging: carton packing

Delivery Lead Time: one month

Detailed Product Description

Technical parameters

RS-232 connections: DB9 (first home) signal: RXD, TXD, RTS, CTS, DCD, DSR, DTR, GND
RS-485/422-connector: Terminals
Signal: T + (485 +), T-(485 -), GND, R + and R-(automatic identification)
RS-485/422 automatic data flow control
Baud rate of 110 bps to 115200bps
Surge protection of 15KV ESD
Lightning 600W per line
Transmission distance 0 ~ 1.2 km
Operating Environment Temperature -40 ^oC~ 85 ^oC
Storage temperature -60^oC to 125^oC
Work humidity 5 ~ 95% RH
Size 90 × 65 × 25.5mm

Product Features

Compact structure;
Automatic flow control;
Anti-radar, 600 W per line lightning surge protection power;
RS-485/422 automatic recognition function;
Interface compatible with EIA / TIA RS-232C, RS-485, RS-422 standards

Product information

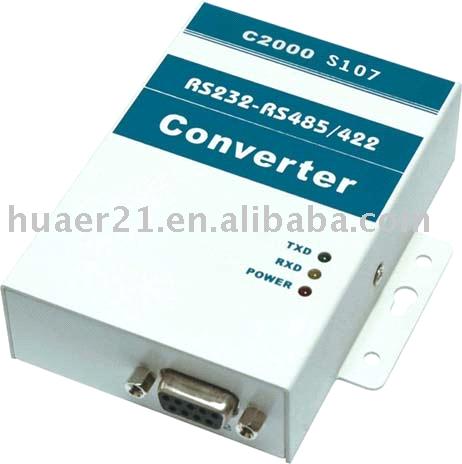

C2000 the S107 anti-radar isolation type connection switch,

compatible RS-232, RS-485, the RS-422 standard,

can the single end RS-232 signal conversion for balanced difference RS-485 or the RS-422 signal.

The fast fast transient voltage blanker (TVS) may effective suppress the lightning and ESD, provides each 600W the thunder stroke surge protection power, may effective prevent the thunder stroke and altogether disturb.

C2000 S107 provides flows to the control automatically, with RS-485, the RS-422 automatic diagnosis function, the use is simpler.
