Shanghai Hangfu Airdrome Equipment Co., Ltd.
China Manufacturer with main products: Shanghai Hangfu Airdrome Equipment Company is a joint-stock company which specializes in the design, development, manufacturing, installing... |
Related products from verified members
| Place of Origin: | Shanghai in China |
|---|
Specifications

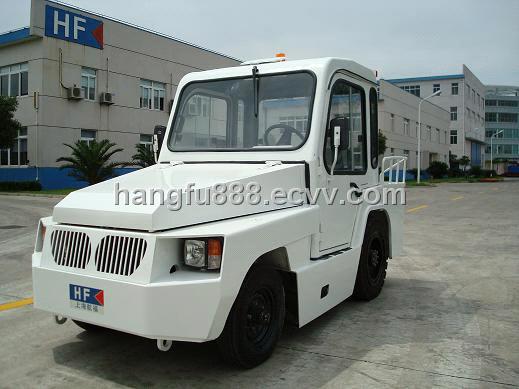

HF5825 baggage/cargo towing tractor, with a maximum drawing bar pull of 2000kg (tractor weight 3000kg) or 2500kg (tractor weight 3400kg) is designed for towing baggage and cargo trailers. The seat is designed according to human engineering theory to enable the driver to obtain the biggest comfortableness and the good field of vision.This unit features a heavy duty frame made of arc-welded steel plate with a heavy cast iron rear body to achieve long operating life.The frame is manufactured by using heavy duty, arc-welded steel.It can be used for long time because there is a steel plate around the automobile body. It is convenient because there is some space to put goods behind bodywork.
|
Technical Specification
|
Engine: ISUZU 4JB1 diesel engine, Working volume 2770 c.c. displacement, Max Power 55kW at 3600 rpm; Max Torque: 172Nm
Transmission: Hydraulic Drive transmission with torque converter & cooler, 2 forward speeds and 1 reverse. Maximum speed 30km/h
Front axle: Heavy duty steering axle with leaf spring suspension
Rear axle: NPR heavy duty driving axle with leaf spring suspension
Brake (Service): Dual circuits with vacuumbrake. Front disk brake and calliper on front wheels, and rear drum brake on rear wheels
Brake (Parking): Mechanically actuated by a cable on rear wheels drum brakes
Steering: Power steering
Tow hitch: E-type hitch at rear of tractor, bolted to the chassis and can be operated from driver’s seat
Tyres Front: 5.00-12-8 Rear: 28X9-15-12
Fuel tank capacity: 50 liters
Paint color: White |
|
Electrical System
|
12VDC electrical system equipped with following equipment: (12VDC direct current electrical system)
12V 90Ah battery
50A alternator
2 front head lights
2 tail lights and 2 stop lights
Front and rear turn signal lights
High water temperature warning light
Low oil pressure warning light
Low battery charge warning light
Hour meter
Fuel gauge
Water temperature table
Electric horn and reverse buzzer
Ignition key switc (pre-start key switch)
Alarming light |
|
Standard items
|
One driver’s seat
One passenger seat
Accelerator pedal and brake pedal
Steer wheel
Each switch and light is identified by pictogram
Power steering
Gearlever |
|
Options available
|
Driver’s cab with/without doors
Front hitch
Rear work light
Flashing warning beacon
Speedometer
Air condition |
|
Dimensions & Specifications
|
Vehicle weight: 3,400 kg (2.5T DBP unit)
Front axle weight: 1,000 kg
Rear axle weight: 2,400 kg
Overall length： 3,290mm (exclude hitch)
Overall width: 1,420 mm
Overall height: 1,380 mm (without cab)
Wheel base: 1,750 mm
Front track: 1,200 mm
Rear track: 1,180 mm
Ground clearance: 100 mm
Turning radius (min.): 3,700 mm |
Overall Dimensions & Specifications
|
Draw bar pull (kg) |
2000 |
2500 |
|
Towing Capacity (kg) |
40000 |
50000 |
|
Overall Length (mm) |
3290 (exc. hitches)
3415 (inc. rear hitch)
3570 (inc. front and rear hitches) | |
|
Overall Width (mm) |
1420 | |
|
Overall Height (mm) |
1380 (without cab)
1900 (with optional cab) | |
|
Wheelbase (mm) |
1750 | |
|
Front Track (mm) |
1200 | |
|
Rear Track (mm) |
1180 | |
|
Turning radius (mm) |
3700 (external)
2500 (internal) | |
|
Ground Clearance (mm) |
100 | |
|
Front Axle Weight (kg) |
900 |
1000 |
|
Rear Axle Weight (kg) |
2100 |
2400 |
|
Weight (kg) |
3100 |
3400 |
