Shenzhen Longxinzhiye Technology Co.,Ltd
China Manufacturer with main products: Weighing Controller, Batching Controller, Belt scale Controller, Packing Scale Controller, Batching Control System, Weighing Transmitter,... |
| Place of Origin: | Guangdong in China |
|---|
Specifications
Application

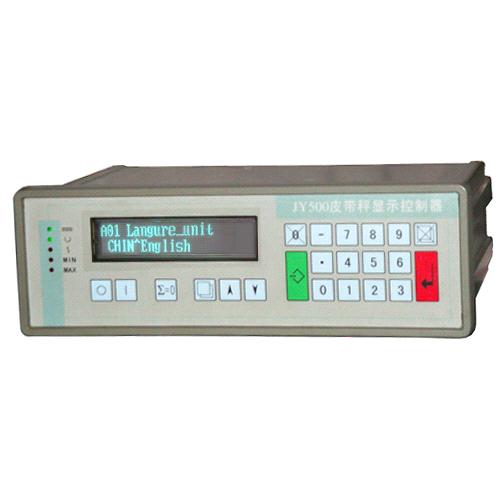

JY500B1 is mainly apply to bulk measurement in various industries such as power generation, coal industry, metallurgy, mining, harbor, chemical and building material industry.
Features
-Apply to quantitative filler machine, batching blet scale, electronic weighing
-Apply to quantitative filler machine, batching blet scale, electronic weighing
belt scale, belt rate monitoring, etc.
-Language selection. English is default, second lauguage can be Chinese
-Self-diagnostic will display any malfunction of the load cell, speed sensor,
-Language selection. English is default, second lauguage can be Chinese
-Self-diagnostic will display any malfunction of the load cell, speed sensor,
system parts as CPU, memory, display, etc.
-Digital electronics. Provide accurate, drift-free performance
-Strong anti-disturbance ability
-Digital electronics. Provide accurate, drift-free performance
-Strong anti-disturbance ability
|
Model |
JY500B1 |
|
Ext.Power supply |
AC 220V (175-285V), 30W, 50Hz |
|
Working temperature |
-10-50℃ |
|
Humidity |
≤90%RH |
|
Dimension |
288（W）x 215（D）x 96（H）mm |
|
Weight |
2.5 Kg |
|
linearity |
0.01FS |
|
Accuracy |
0.1% |
|
Tolerance |
0-99999900 t |
|
Feed rate |
0.0020-99999.9 t |
|
Division |
0.001kg、0.01kg、0.1kg、1kg、0.1t、1t… |
|
Max.net signal input |
≤30mV |
|
Display |
160*32 VFD Screen 110x30mm |
|
Load cell excitation |
DC 9V, 250mA |
|
Speed sensor |
DC ≤24V, 50mA |
|
Speed pulse |
0-3000Hz, 0-24V |
|
|
|
|
Modbus Interface: |
RS232<=1.5m RS485<=1000m
Default baud rate: 9600
(Baud rate and Communication farmat optional) |
|
Analog Input |
0-20mA, Long-distance setting the
flow signal by DCS interface |
|
Analog Output |
0-20mA, 2 Ports
1 Port for measure signal
( Flow, speed, load signa optional )
2 Port for control signal |
|
Digital Output |
Touch Capacity AC 220V, 3A |
|
Digital Input |
DC 24V, 4 routes Passive touch signal
1 route: external error acknowledge
2 route: external control for stop signal
3 route: external control for start signal
4 route: control for speed pulse input signal |
|
Protected class |
IP54 |
