Shenzhen Longxinzhiye Technology Co.,Ltd
China Manufacturer with main products: Weighing Controller, Batching Controller, Belt scale Controller, Packing Scale Controller, Batching Control System, Weighing Transmitter,... |
| Place of Origin: | Guangdong in China |
|---|
Specifications

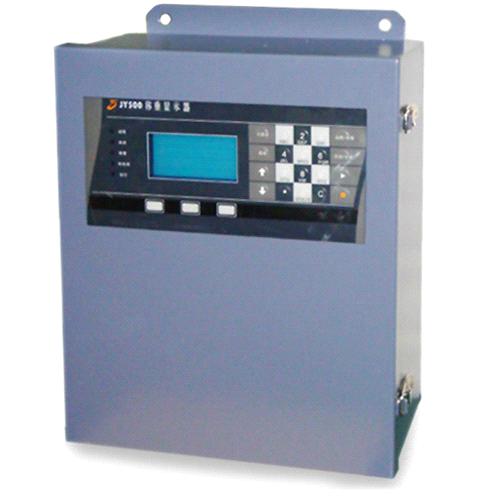

Name:Belt Scale Controller B3
Features:
-Apply to quantitative filler machine, batching blet scale, electronic weighing belt scale, belt
rate monitoring, etc.
-Integrated withweighing, displayand complete batchingcontrol functions
-Language selection.English is default,second lauguage canbeChinese(Mandarin)
-Self-diagnostic will display any malfunction of the load cell, speed sensor, system parts as
CPU,memory,display,etc.
-Multiple functions of signal acquisition,error correction, status determining, data
processing, operation display, PIDadjustment, DCS communiction, etc.
-Strong anti-disturbance ability
-Apply to quantitative filler machine, batching blet scale, electronic weighing belt scale, belt
rate monitoring, etc.
-Integrated withweighing, displayand complete batchingcontrol functions
-Language selection.English is default,second lauguage canbeChinese(Mandarin)
-Self-diagnostic will display any malfunction of the load cell, speed sensor, system parts as
CPU,memory,display,etc.
-Multiple functions of signal acquisition,error correction, status determining, data
processing, operation display, PIDadjustment, DCS communiction, etc.
-Strong anti-disturbance ability
JY500B3 is mainly applied to bulk measurement in various industries such as power generation, coal industry, metallurgy, mining, harbor, chemical and building material industry.
|
Model |
JY500B3 |
|
Ext.Power supply |
AC 220V+20%, 50Hz/60Hz |
|
Working temperature |
-10-50℃ |
|
Humidity |
≤95%RH |
|
Dimension |
280（W）x 340（D）x 160（H）mm (Embedded type)
310（W）x 140（D）x 370（H）mm(Wall-mounted type) |
|
Weight |
3.5Kg |
|
linearity |
0.01FS |
|
Accuracy |
0.1% |
|
Display |
128*64 VFD Screen |
|
Tolerance |
0-99999999 t |
|
Feed rate |
0.020-99999.9 t/h |
|
Input sensitivity |
2.0mV/V-3.0mV/V |
|
Division |
0.001kg、0.01kg、0.1kg、1kg、1t… |
|
Max.net signal input |
≤20mV |
|
Load cell excitation |
DC 9V, 200mA
maximum connect 4 load cells (6-wire) |
|
Speed sensor
Speed pulse |
DC 24V, 50mA
0-3000Hz |
|
Analog input |
4-20mA, can setting by DCS interface |
