Place of Origin:	Shenzhen in China

Specifications

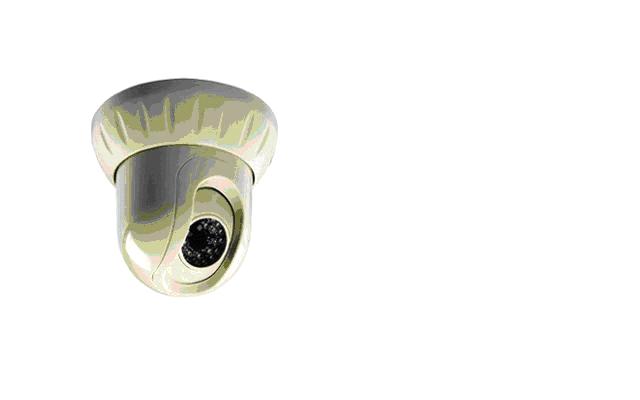

Product			Pan/ Tilt IR IP Dome ( Indoor)
Model			SUD140A
Feature			D1 Resolution Image, Remote/ local Monitoring and Recording, Snapshot, OSD, Multi-recording method, Optimal audio/ video synchronization.
			View by IE and Client Software
Software Management			64 pictures of client software. Search and distribute IP address
Security			3 Levels: administrator, user and guest.
Alarm/ Recording			Motion detection, Email when alarm, Mobile Phone Surveillance Schedule, Manual, Alarm Recording
Pan/ Tilt Control			RS485
Operating Temperature			-10°C - 50°C
IR LED			24 Pcs
IR LED Distance			20 meters
Horizontal rotation range			20°~ 355°
Vertical rotation range			0°~ 90°
Rotation speed			Horizontal:10°/S Vertical: 15°/S
Browser			Windows XP/Vista Version
			IE6.0 Version above
			NET4.5 Version above
Hardware		CPU	32Bit RSIC Embedded Processor
		OS	Embedded Linux system
Network	Protocol		TCP/ IP, HTTP, ARP, RARP, TCP, ICMP, DHCP, PPPOE, DDNS etc.
	Interface		RJ45 10/ 100M Ethernet
Video	Compression		MPEG-4
	Frame Rate		Up to 30 fps to the all Resolution
	Resolution		D1: 720×576 CIF: 320×288 FIELD: 720×288 QCIF: 192×144
	Input		1Ch
	Output		1Ch
Audio	Compression		ADPCM
	Input		Built-in MIC
CCD	Image Sensor		1/3 SONY, 420/480/520 TVL Optional
	Min Illumination		0.5 Lux
	S/ N Ratio		>48db (AGC OFF)
	Lens Interface		CS/ C
	White Balance		Auto
	BLC		Auto
Power			Power over Ethernet (IEEE 802.3af) DC12V 1A
Color			White
Dimension			198185142（mm）
Weight			1.2 KG
