TSH (Guangzhou) Tech. Development Conpany
China Manufacturer with main products: optical power meter, optical laser source, Multi meter, loss tester, visual fault locator, and we also offer the fusion splicer, and OTDR,... |

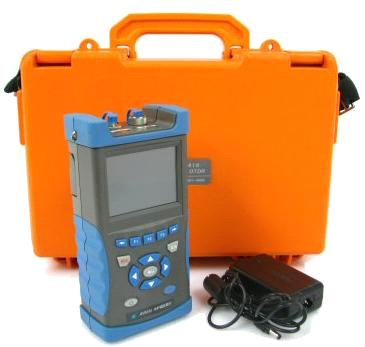

(Olympic Sales Promotion)P2+ Handheld OTDR
| Supply Ability: | 100 Set/Sets per Month |
|---|---|
| Shipping: | 7 days |
| Payment Terms: | T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Guangdong in China |
|---|---|
| Packaging Details: | box |
Specifications
1. Olympic Sales Promotion;
2. Lowest Price;
3. with a Multi meter for free;
4. Multi meter is integrated with power meter,
Main features
`28/26/24dB high dynamic range (1310nm/1550nm/1490nm)
`1.6m extra-short event dead zone
`0.1m high resolution, 65535 sampling points
`Auto measuring with high speed, one-button operation
`Advanced TFT color LCD, visible clearly in outdoor
`Visible fault locating (VFL)
`Large internal memory for data storage
`High speed USB port for connectivity and data storage
`Over 10 hours of battery operation life
`Write/read file in Bellcore GR196 file format
`Attached with trace analyzing software, professional report can be generated immediately
`Updating system on-line
Main Specifications:
Model POK-2+ POK-2C
Pulse Width 10ns to 10240ns
Central Wavelength 1310nm/1550nm+/-15nm 1310nm/1550nm+/-15nm /1490nm+/-20nm
Applicable Fiber Single-mode
Dynamic Range (SNR=1) 28/26/24dB
Event Dead Zone*1 <=1.6m
Distance Range 1.6km-256km
Sampling Resolution 0.1m-16m
Sampling points 65k
Distance Accuracy +/-(1m+sample space + measurement distance*0.003%)
Display Color LCD (touch screen)
Interface USB
Optical Connector FC/UPC(universal connector, option)
Power Supply DC: 10V-6V(3A),(AC adapter 100-240V, 50/60Hz,1.5A),
Battery Life >=10 hours
Powering AC, and built-in Rechargeable Lithium battery
*1:Pulse width: 10 ns, terminal reflection loss: >=40 dB, typical.
Specifications subject to change without notice.
Ordering information
POK-2+ 1310/1550nm double wavelengths，28/26dB，with an advanced power meter POP-560.
POK-2C 1310/1550nm/1490nm tri-wavelengths，28/26/24dB, with an advanced power meter POP-560.
POK-2L+ 1310/1550nm double wavelengths，28/26dB，with a Multi Tester POL-580
POK-2CL 1310/1550nm/1490nm Tri-wavelength，28/26/24dB，with a Multi Tester POL-580
