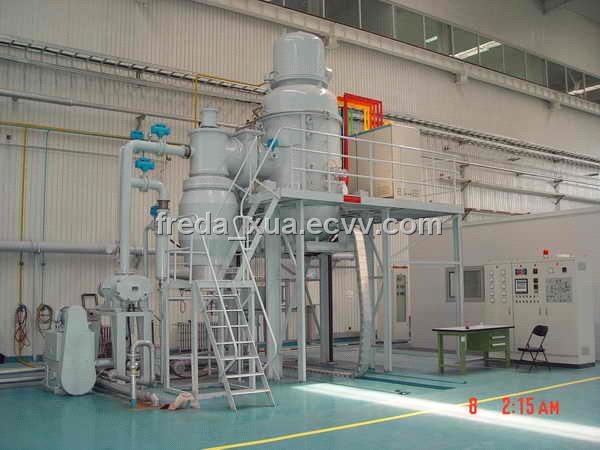

Vacuum Annealing Furnace

Inquiry Now

Related products from verified members

Ladle Refining Furnace

Price:

Min. Order:20 Ton
MoSi2 Heating Elements for Vacuum Atmosphere Bo...

Price:11,410.00-12,230.00 USD/Set

Min. Order:1 Set
Blast Furnace Technological

Price:450,000.00-1,890,000.00 USD/Set

Min. Order:1 Set
High performance and stable quality induction t...

Price:30,305.00-75,760.00 USD/Set

Min. Order:1 Set

Product Details

Place of Origin:	Beijing in China

Specifications

WZT series horizontal vacuum annealing furnaces are mainly used for bright annealing, solution aging, vacuum brazing of high speed steel, high-alloyed tool and die steel, electrical magnetic material, nonferrous metal, stainless steel etc., also for sintering of magnetic material.

Main technical parameters:

Type	Heating zone mm	Batch kg	Max temperature	Final vacuum Pa	Heat power Kw	Uniformity of temperature
WZT-20	200×300×200	20	1320	2.0×10^-1 4.0×10^-3	36	±5
WZT-30	300×500×300	80			57
WZT-45	450×670×400	200			85
WZT-60	600×900×600	400			140160

Gas-cooling pressure2.0×10⁵ Pa Pressure rise rate6.5×10^-1 Pa/h

LZT series vertical vacuum annealing furnaces are mainly used for bright annealing, solution aging, vacuum brazing of high speed steel, high-alloyed tool and die steel, electrical magnetic material, nonferrous metal, stainless steel etc. and slender parts, also for sintering of magnetic material.

Main technical parameters:

Type	Heating zone mm	Batch kg	Max temperature	Final vacuum Pa	Heat power Kw	Uniformity of temperature
LZT-60	Φ600×900	120	1320	2.0×10^-1 4.0×10^-3	100	±5
LZT-80	Φ800×1200	250			250
LZT-120	Φ1200×1300	500			375
LZT-150	Φ1500×1200	1000			480

Gas-cooling pressure2.0×10⁵ Pa Pressure rise rate6.5×10^-1 Pa/h
