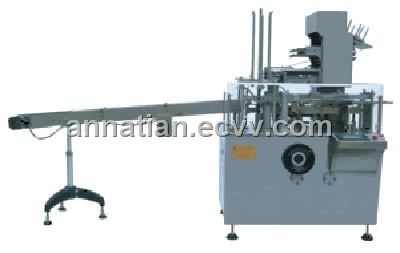

>Products Catalog > bag packing machine > Fully-Automatic Medicine Box Packaging Machine (HDZ-60K)
| Place of Origin: | Liaoning in China |
|---|
Specifications
* Main aplication:
Mainly intended for automatic box packing of injection in bubble cap board trays or bubble-cap injection and objects similar to bubble cap boards.
* Main characteristics:
Speed-regulated with variable frequecny, adopting PLC automatic control system. Adopting man-machine interface operating system with automatic indication of packaging speed and counting. Box packaging of different specifications may be conducted on the same machine. Automatically folded description sheets can be prepared and 3-line lot numbers in steel seal can be printed at the same time. Switchover between manual and automatic operation; Automatic inspection system for alarm and machine switch-off in case of non-conforming products.
* Main technical parameters:
- Speed: 35-70box /min
- Specification of the paper carton:
L(110mm-160mm)×H(12mm-35mm) × B(70mm-135mm)
- Specification of the manual: (110mm-160mm)×(90mm-250mm)
- Equipment dimensions: 1150mm×1120mm×1550mm(Not including conveyer belt)
- Power: 380V 50HZ
- Total power: 1. 1kw
- Compressed air pressure: 0.6Mpa
- Consumption tolerance: 30-90liters/min
- Weight: 850kg
