Shenyang Machinstar Machinery Imp. & Exp. Co., Ltd.
China Manufacturer with main products: Mixer, Granulator, Tablet Press, Capsule Filling Machine, Coating Machine, Blister Packing Machine and Encasing Machine, Bottle Counting... |
| Place of Origin: | Liaoning in China |
|---|
Specifications
HDZ-60G/100G/100DG

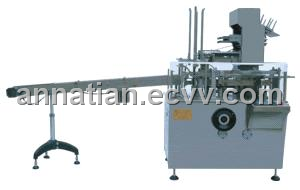

FULLY-AUTOMATIC OINTMENT BOX PACKING MACHINE
Main application
Mainly intended for automatic box packaging of ointment bottles (aluminum or plastic)
Main characteristics
Speed-regulated with variable frequency, incorporating PLC automatic control system. Lncorporates man-machine interface operating system with automatic indication of packaging speed of different specifications without replacing any parts.
Incorporates automatic inspection system, with supension and removal of non-conforming products.
Main technical parameters
Speed;(50-80)/60-120)box/min
Specification of the paper carton:
B(65mm-120mm)×H(25mm-40mm) ×L(25mm-40mm)
Specification of the manual:990mm-250mm) ×(110mm-160mm)
Epuipment dimensions:L×B×H 1150mm×1120mm×150mm(Does not include the conveyer belt)
Power:380V 50HZ
Total powe: 1.1KW
Compresed air pressure :0.6Mpa
Consumption tolerance:30-90liters/min
Weight:800kg
Can customize to go beyond the above specification company
