Hebei Jingda Machine Tools Manufacturing Co., Ltd.
China Manufacturer with main products: Preicision Cast Iron Inspection Plates, Precision Bench Center, Granite Measuring Instruments, Cast Iron Surface Plate, Angle Plate, v-Block,... |

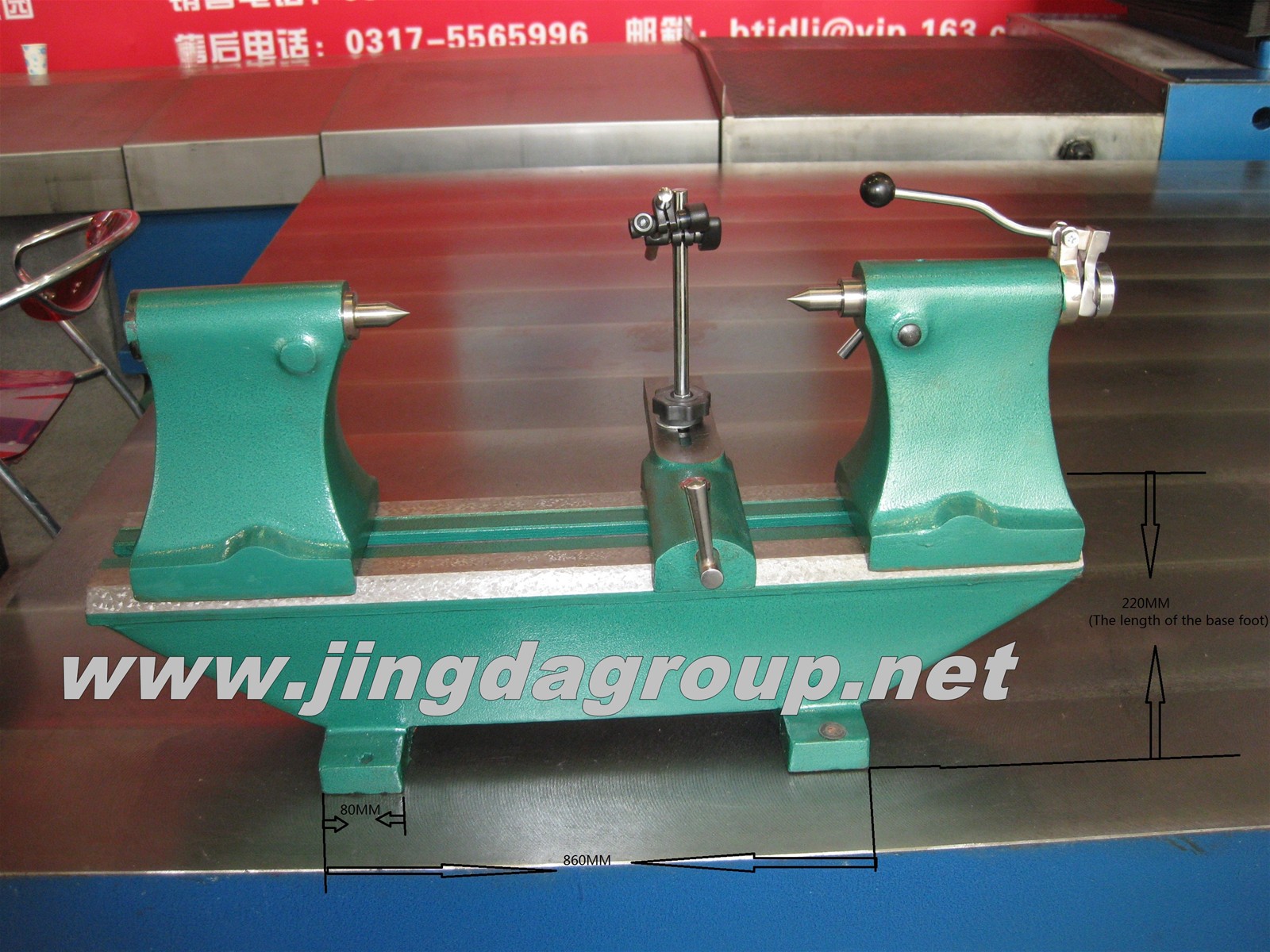

Cast iron bench center
| FOB Price: | 100.00 - 3,000.00 USD/Set |
|---|---|
| Supply Ability: | 200 Set/Sets per Month |
| Payment Terms: | L/C, T/T |
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Hebei in China |
| Packaging Details: | wooden case with anti-rust treatment |
Quick Details
- Model Number: 2010~15025
- Brand Name: JINGDA
Specifications
The instrument is mainly used for inspecting the radial bound, circular bound and end surface circular bound of the axial or disk parts. The product is novel and good-looking in design, and its accuracy is high while it is very convenient in use.
Main technique parameters:
1, The radial circular bound of the Morse No.2 finial 60°cone surface to the Morse cone≤0.005mm.
2, The parallelism between the finial axle within the scope of 100mm and the leading track (parallel and vertical direction)≤0.006mm.
3, The max diameter of the tested part is 270mm.
4, Measuring length 300mm, 500mm, 1000mm, 1500mm, 2000mm
| Type (mm) | Center Height (mm) | Measuring diamete (mm) | Precision | |
| Horizontal (μm) | Vertica (μm) | |||
| 200 | 100 | 200 | ≤ 8 | ≤ 5 |
| 300 | 100 | 200 | ≤ 8 | ≤ 5 |
| 300 | 170 | 340 | ≤ 8 | ≤ 5 |
| 300 | 300 | 600 | ≤ 8 | ≤ 5 |
| 500 | 170 | 340 | ≤ 8 | ≤ 5 |
| 500 | 250 | 500 | ≤ 8 | ≤ 5 |
| 500 | 300 | 600 | ≤ 8 | ≤ 5 |
| 1000 | 250 | 500 | ≤ 10 | ≤ 8 |
| 1000 | 300 | 600 | ≤ 10 | ≤ 8 |
| 1500 | 250 | 500 | ≤ 20 | ≤ 16 |
| 2000 | 230 | 460 | ≤ 30 | ≤ 20 |
| 2500 | 300 |
|
|
|
precision bench center from this supplier
Min Order: 1 Set
More products from other suppliers
FOB Price: 38.25-300.00 USD/Unit
Min Order: 1 Unit
