Qingdao Desiree Automobile Inspection Device Co.,Ltd.
China Manufacturer with main products: auto lift6 |
Related products from verified members
| Place of Origin: | Shandong in China |
|---|
Specifications

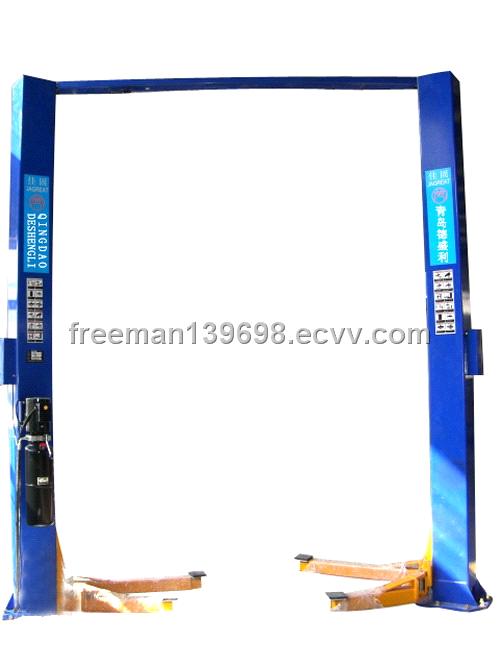

Features:
True asymmetrical design
30 degree rotated columns
Dual direct drive hydraulic cylinders
Cable-equalization system
Dual-point automatic safety locks,Single point release
Extra width between post
Automatic arm unlocking
Automatic stop in the highest position
4.5T lifting capacity
Plastic powder coating for durability and environment safety
Taller lift carriages to minimize stress on columns
Taller lift carriages to minimize stress on columns
Specifications: Working noise ： ≤ 75dB （ A ）
lifting time ： 50s
lower time ： 40s
Working temperature ： -5 ℃ ～ 40 ℃
Motor power ： 2.2Kw/220 ～ 380V
Working pressure ： 14Mpa
relative humidity ： 80%
Using altitude ： ≤ 1000m
lifting capacity ： 10,000lbs/4500kgs
Lifting height ： 1961mm
lifting time ： 50s
lower time ： 40s
Working temperature ： -5 ℃ ～ 40 ℃
Motor power ： 2.2Kw/220 ～ 380V
Working pressure ： 14Mpa
relative humidity ： 80%
Using altitude ： ≤ 1000m
lifting capacity ： 10,000lbs/4500kgs
Lifting height ： 1961mm
width between posts ： 2535mm
Whole height ： 3672mm
Package size ： 1070 × 450 × 3792mm
20 container ： 14 sets
40 container ： 36 sets
Whole height ： 3672mm
Package size ： 1070 × 450 × 3792mm
20 container ： 14 sets
40 container ： 36 sets
Single Lock Release: Manual,Pneumatic、Electric .(Optional)
