Shanghai Weilit Heavy Mining Machinery Co., Ltd.
China Manufacturer with main products: Jaw Crusher, Impact Crusher, Sand Maker, Combined Crusher, Fineness Crusher, Cone Crusher.Sand Washer, Vibrating Screen, Vibrating Feeder |
14th
| Export Markets: | North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe |
|---|---|
| Place of Origin: | Shanghai in China |
| Packaging Details: | Container,Nude Packs, In Bulk |
Specifications

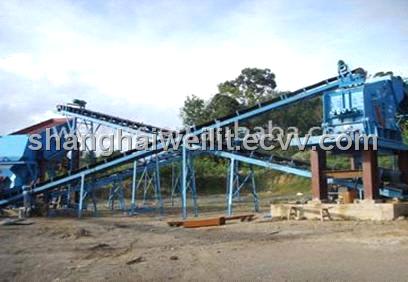

DT Series Belt Conveyors feature in high capacity, reasonable structure, easy maintenance, and standard components. The Belt Conveyor is widely used to transfer granular materials or packaged stuff in many industries, such as mining, metallurgical and coal etc. As per process requirement, one single belt or multiples belts can be assembled flexibly with other transferring equipments.
DT Series Belt Conveyors should be operated under the condition with temperature range from -20 Celsius Degree to +40 Celsius Degree. The temperature of transferred materials should be lower than +50 Celsius Degree.
DT Series Belt Conveyor could be categorized according to different standards as follows:
(1) Categorized by driving form:
1. Chain Driving Series
Driven by cyclical pin-wheel reducer (including outdoor electric motor) and chain-driving structure
2. Mechanical Driving Series
Driven by Side-hung reducer and belt-driving structure
3. Electric Rotor Driving Series
Directly driven by electric rotors
(2)Categorized by Installation Manners
1. Fixed Series
2. Mobile Series
It is equipped with tires and idler angle adjustment facilities so as to meet diversified requirements according to loading tasks.
(3) Categorized by Structure
The belt conveyors have three different structures:
1. U Steel Structure
2. Fame Structure
3. Thruster Structure
Note: it is optional for clients to order belt conveyors with or without repairing walk-ways.
Remark:
The capacity listed in the above mentioned table is calculated under following condition:
1. The density of the transferred materials is 1.0t/m3
2. The accumulated slope of the material is 30 degrees.
3. The density of transferred materials should be less than 2.5t/ m3
The length of belt conveyor can be adjusted according to special requirements.
Main Technical Parameters:
|
Belt Width (mm)
|
Belt Length/ Power(m/kw)
|
Belt Length/ Power(m/kw)
|
Belt Length/ Power(m/kw)
|
Belt Speed (m/s)
|
Capacity(t/h)
|
|
400
|
≤12
1.5
|
12-20
2.2-4
|
20-25
3.5-7.5
|
1.25-2.0
|
50-100
|
|
500
|
≤12
3
|
12-20
4-5.5
|
20-30
5.5-7.5
|
1.25-2.0
|
108-174
|
|
650
|
≤12
5
|
12-20
5.5
|
20-30
7.5-11
|
1.25-2.0
|
198-318
|
|
800
|
≤6
4
|
6-15
5.5
|
15-30
7.5-15
|
1.25-2.0
|
310-490
|
|
1000
|
≤10
5.5
|
10-20
7.5-11
|
20-40
11-12
|
1.25-2.0
|
507-811
|
|
1200
|
≤10
7.5
|
10-20
11
|
20-40
15-30
|
1.25-2.0
|
742-1188
|
