Home  >Products Catalog > WS67K CNC PRESS BRAKE MACHINE

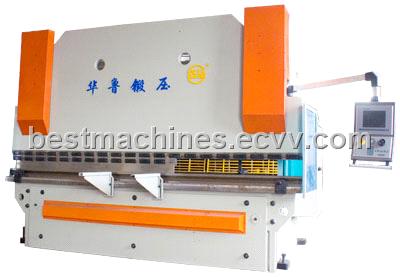

WS67K CNC PRESS BRAKE MACHINE

Shipping: 4-6months
Payment Terms: L/C, T/T(Bank Transfer)
Inquiry Now
Follow ECVV to get products trends and industry news

Related products from verified members

Place of Origin: Shandong in China

Specifications

The machine applies advanced technology and good-looking design, either of 2 oil cylinders is fixed on the left and right wall separately. The scientific & mechanical structure, with enough rigidity, is designed for the whole machine.
The type of electro-hydraulic servo synchronization is applied to ensure oil cylinder synchronous, so it has good synchronous performance, strong anti-deflective-load capacity, easy for debugging. 2 oil cylinders stroke, Y1 and Y2, can be controlled individually，detecting the slider displacement by raster ruler, with high synchronous precision
The CNC system is DA Series, DA-65W，DA-56，DA-53, of Netherlands Delem company.
Hydraulic cylinder automatic compensation or tilted wedge deflection automatic compensation mechanism is applied for the worktable deflection compensation (V axis), oil cylinder pressure and tilted wedge moving distance is controlled by CNC, to protrude the middle of table board for compensation of the deflection. This machine is accurate compensated，high-precision bending.
Hydraulic valve group is BOSCH-RE×ROTH, the special matched for CNC. raster ruler is made in Heidenhain, Germany. The sealing parts of oil cylinder and other main electrical elements are imported.
CNC X axis is equipped for the back blocking material of normal machine. It is driven by AC servo motor, transmit components are for the sub-ball-screw-drive and sub-linear-guide-rail.

Spec
Nominal pressure（KN）
Length of worktable（mm）
Distance between columns（mm）
Depth of throat（mm）
Ram stroke（mm）
Open Height（mm）
Speed（mm/s）
Main motor power（KW）
Approach
Pressing
Return
100/2500
1000
2500
2100
320
150
400
70
8
70
7.5
100/3200
1000
3200
2600
320
150
400
70
8
70
7.5
100/4000
1000
4000
3300
320
150
400
70
8
70
7.5
160/3200
1600
3200
2600
360
200
475
70
8
70
11
160/4000
1600
4000
3300
360
200
475
70
8
70
11
200/3200
2000
3200
2600
360
200
475
70
8
70
15
200/4000
2000
4000
3300
360
200
475
70
8
70
15
200/6000
2000
6000
5100
360
200
475
70
8
70
15
250/3200
2500
3200
2600
400
250
520
70
8
70
15
250/4000
2500
4000
3300
400
250
520
70
8
70
15
250/6000
2500
6000
5100
400
250
520
70
8
70
15
300/3200
3000
3200
2600
400
250
520
70
8
70
22
300/4000
3000
4000
3300
400
250
520
70
8
70
22
300/6000
3000
6000
5100
400
250
520
70
8
70
22
400/4000
4000
4000
3300
400
300
560
70
8
70
30
400/6000
4000
6000
5100
400
300
560
70
8
70
30
500/4000
5000
4000
3300
400
300
600
70
7
70
37
500/6000
5000
6000
5100
400
300
600
70
7
70
37
600/6000
6000
6000
5000
400
320
640
70
7
70
45
600/8000
6000
8000
6200
400
320
640
70
7
70
45
800/6000
8000
6000
5000
500
400
800
70
7
70
2×37
800/8000
8000
8000
6200
500
400
800
70
7
70
2×37
1000/8000
10000
8000
6200
600
400
860
70
7
60
2×45
1000/10000
10000
10000
7800
600
400
860
70
7
60
2×45
1200/8000
12000
8000
6000
600
400
920
70
7
60
2×45
Note: The listed parameter is for normal type, and other press brake machine of WS67K type can be also supplied according to requirements.
