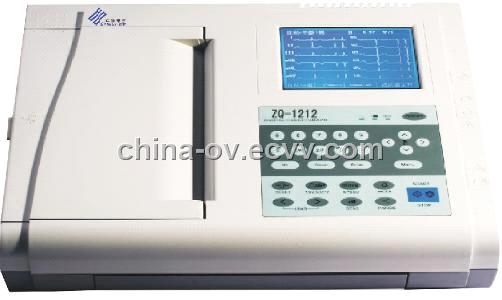

Digital Twelve Channels ECG (LCD screen)

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Related products from verified members

Cell Phone LCD

Price:

Min. Order:
19-inch Resistance LCD Touch Screen with 8,000:...

Price:

Min. Order:50 Pieces
New Black Replacement Front Touch Screen Digiti...

Price:200.00-260.00 USD/Bag

Min. Order:50 Bags
Mini Medicine Cooler Large LCD Display Screen

Price:280.00-288.00 USD/Set

Min. Order:500 Sets
42" inch stand on rotatable lcd screen pla...

Price:1,000.00-2,000.00 USD/Set

Min. Order:1 Set

Product Details

Place of Origin:	Hubei in China

Specifications

Features:

All Digital wave filtering designed;

Select simultaneously acquisition, display and record 12-lead ECG signals and datas;

SEMIP Automatic Electrocardiogram Analytical System which passed test by European CSE Data Base;

Large memory to store, index and playback medical record history;

RS-232 port, USB port easy for data transmission;

The base line autoregulation, optimize printing, rhythm lead selective available;

To display 12 leads waveform, Patient infomation, Low paper indication, Leads unconnect indication, Battery indication, Operating mode, Paper printing speed, HR, ID, Time, Heart rate, Filter etc.;

Selectable Multi-recording modes, Three-channel, Six-channel 6-channel+Rhythm, twelve-channel waveform record simultaneously and synchronously;

Automatic diagnosis & analysis；

Auto/ Manual/ Analytic recording function;

High resolution Thermal Array printing, 210mm A4 size paper, AC/ DC supplied;

Large capacity of battery (4400mAH), up to 2.5hrs working continuable;

Hidden handle. Very easy to carry;

ECG workstation provide with computer supported optional .

Main Specification

Lead Standard 12 leads

Operating Mode: Automatic / Manual

Input Impedance ≥50ΜΩ

Input Circuit Current: ≤ 50nA

Time Constant: > 3.2 Sec

Paper specification 210mm x 20m (x 30m)

Recording mode Thermal Array printing

Sensitivity Option: Automatic

Safety classification IEC60601-1 class I, type CF

Power Condition: AC: 220V±10%, 50Hz/60Hz

DC: 12V Rechargeable battery & Circuitry
