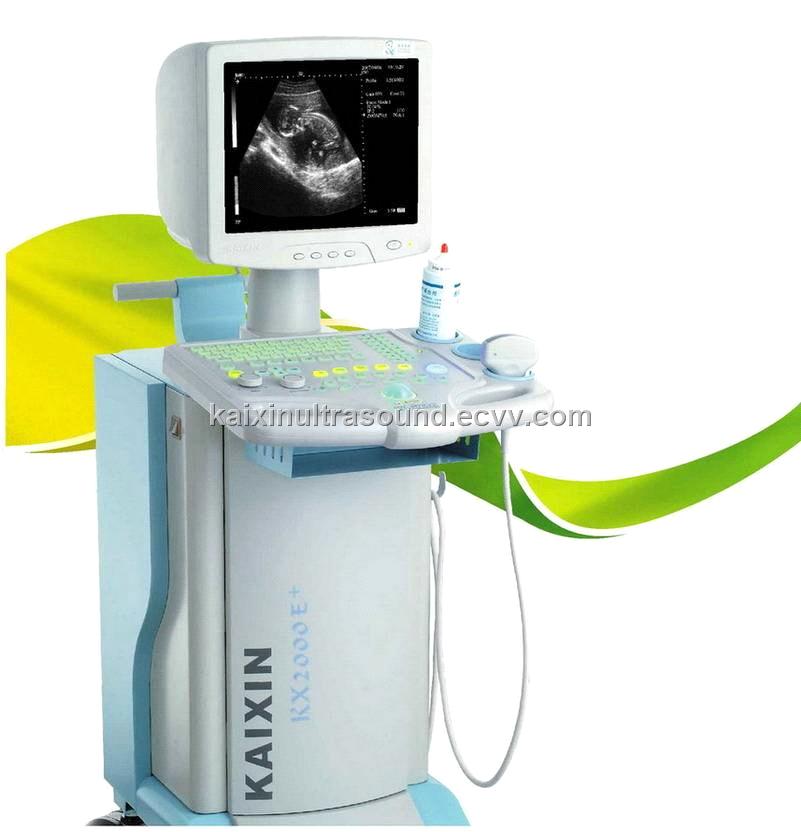

Digital Trolley Ultrasound Scanner (KX2000E+)

Specifications

Product Feature1.Digital image technology2.Ingenious outline and multifunction3.Different probes canbe used optionally4.Easy to move and stable

Product Specification/Models1.Technology:All-digital imaging technology,full digital beam forming,excellent image quality with high resolution and high penetration2.Scanning methods:Electronic convex/electronic linear/electronic micro-convex3.Scanning technology:Real-time dynamic imaging,harmonic imaging4.Probe:Multi-frequency probe series5.No.of probe connectors:26.Monitor:14'' high resolution non-interlaced SVGA display7.Keyboard:Ergonomic and backlight keyboard8.Gray scale:256 levels9.Display modes:B,B/B,B/M,M,or 4B10.Speed in M mode:1s,2s,3s,4s,5s,6s,7s and 8s11.Magnification:×0.8,×1.0,×1.2,×1.5,×1.6,×2.0,×2.4 and×3.012.Focusing methods:Single-poin,multi-stage transmitting,dynamic focusing13.CINE loop:256-frame14.Zoom:Intelligent local zoom in real-time and frozen mode15.Image storage and transfter:Built-in 100-frame image storage,USB Image transfer, Ultrasound working station16.Image Processing:Depth enhancement/pan function,Left/right,positive/negative,vertical,horizontal flip and B/W conversion, Angle change,Image freeze/unfreeze,Gamma correction,edge enhancement for image after-processing, gray transformation, gray rejection etc, Frame correlation function, Adjustment and display of near field,far field,total gain and dynamic range, Pre-processing: IP selection, dynamic range, edge enhancement, smooth, frame averaging, scanning angle selection, line density selection etc17.Measurements:B mode:distance,circumference,area,volume,ratio,angle,% stenosis,histogram,profile etc, M mode: distance, time, velocity, heart rate etc, General software packages for Abdomen,OB/GYN,Small parts,Urology,Cardiology etc, Obstetric package including 10 tables,automatic calculation of EDD,BPD, GS, CRL, FL, HC,AD,AC,GA,FW and fetus weight, 64 body marks18.Report:Obstetric report19.Documentation:Full screen documentation, hospital name, Patient name, date/time20.Power Supply: AC110/230V,50/60Hz21.Power consumption:≤180VA22.Others: 8 kinds Pseudo-color, Energy-saving, PAL-NTSC switchable

ApplicationExtensive clinical applications:abdominal,urology,GYN,OB,small parts,pediatric,cardiology,biopsy

Other InformationStandard Parts1.KX2000E+ main unit2.14''high resolution non-interlaced SVGA display3.2 probe connectors4.256-frame CINE loop5.100-frame image storage6.2 USB ports7.Measurement & calculation software packages8.3.5MHz convex abdomen probe (for abdomen,GYN,OB,urology)9.64 body marksOptional Probes1.5.0MHz micro-convex cardio probe (for cardio)2.5.0MHz convex paediatric probe (for pediatrics)3.6.5MHz convex transvaginal probe (for endovaginal,endorectal)4.7.5MHz high frequency linear probe (for small parts,orthopedics,breast,musculoskeletal)Optional Parts1.Biopsy needle-guided brackets2.LCD with 10 inch3.USB software with connection cable4.Ultrasound working station5.Ultrasound goggles6.Thermal printer(brand:Mitsubishi,model:P93W-S)7.Pinter paper(cheap)8.Pinter paper(expensive)9.Pseudo-color
