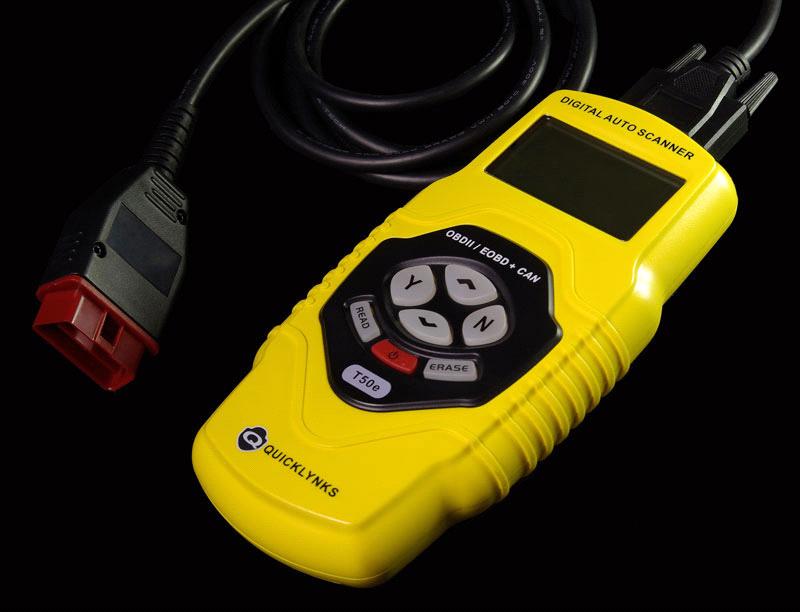

OBDII Car Diagnostic Tool auto scanner T50e

Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now

Related products from verified members

Autoboss Escaner V30

Price:

Min. Order:
AYQ-3 High Accuracy Preset Torque Driver

Price:60.00-70.00 USD/Piece

Min. Order:1 Piece
VCT2000

Price:

Min. Order:
Test Instruments

Price:

Min. Order:

Product Details

Place of Origin:	Guangdong in China
Packaging Details:	carry case and color box

Specifications

Detailed Product Description :auto diagnostic tool for OBD2 EOBD JOBD
Features of Product
1).Support CAN-Bus protocal
2). I/M Readiness Status
3).Freeze Frame Information
4).Retrieves VIN
5).Large LCD display
6).More 7-keypads for quick operation.
7).Memory / battery backup
8).Detachable OBD2 cable
9).On-line Updatable

Functions Description
1.Reads and identifies DTCs (Diagnostic Trouble Codes) : Generic Codes
(P1,P3,U1) + Manufacturer Specific Codes (P0,P2,P3,U0) and Stored Codes +Pending Codes.
2.Erase touble codes
3.Supports VPW+PWM+ISO9141+KW2000 protocals
4.Supports CAN (Controller Area Network) Protocol
5. Reviews OBD2 monitor and I/M (Inspection and Maintenance) Readiness Status 6.Detects OBD2 Freeze Frame Information
7.Retrieves VIN (Vehicle Identification No.) on 2002 and newer that
support Mode 9
8.Resets Check Engine Lights / MIL ( malfunction indicator lamp) Status
9.On-line Updates Software with a standard Windows PC
10.Displays DTCs and definition both on unit screen
11.Large LCD display (128 x 64,backlit) with adjustable contrast
12.Up to 7 Keypads for easy operation.
13.Memory / battery backup for off-vehicle power supply
14.Detachable and replaceable 16-pin OBD2 cable
15.Language: English

Vehicle Coverage
All OBD2 & EOBD & JOBD compliant vehicles with a 16-pin Interface
(include all 1996 and newer cars, light trucks and SUVs sold in the United
States,all 2000 and newer sold in the Europe ,Japan and Asian Area)
CAN, VPW,PWM,ISO9141,KW2000 protocals compliant vehicles
(including those equipped with the next-generation protocol Control Area
Network.)

Specifications
Display: Backlit, 128 x 64 pixel display with contrast adjustment
Operating Temperature: 0 to 50C° (32 to 122 F°)
Storage Temperature: -20 to 70C° (-4 to 158 F°)
Power: 8 to 16 Volts provided via vehicle battery
Dimensions:
Length                   Width           Height
209 mm (8.22")       107 mm (3.74")    37 mm (1.38")
NW: 0.73kg (1.611b), GW: 0.98kg(2.161b)

Accessories Included
1. User's Manual   2. CDs   3.OBD2 Cable 4.USB Cable 5.Carry Case
