China Zhengtong Machine Co.,ltd
China Manufacturer with main products: Glass Machine , mainly insualting glass machine, also assembly for the insulating glass machine |

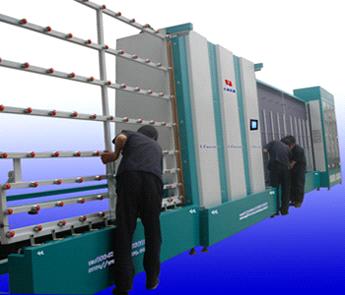

Glass Machine
| FOB Price: | 1000.00 - 40000.00 USD/Set |
|---|---|
| Supply Ability: | 30 Set/Sets per Month |
| Payment Terms: | L/C, T/T(Bank Transfer) |
Related products from verified members
| Place of Origin: | Shandong in China |
|---|---|
| Packaging Details: | 20" or 40" |
Specifications
1.Adopt the design of all-backrest wheel transmission and the bridge-style structure, high bearing ability.
2.Adopt the world famous VIGOR all PLC control, high automatization, easy to operate. The washing machine adopts intermittent working style to save electricity.
3.The ohm dragon sensor of Japan provides induction signal.
4.Four pairs of fur-brushes which could wash film-coating glass as well as Low-E glass without nick.
5.Adopt easy-view touch screen of Taiwan to made easy transfer between automatic and manual operation. The function of single-operation display could show the operation as well as the fault, easy to examine and repair.
6.Adopt lateral orientational plate to make the glass suffer press equally in the pressing section. In this way, it can assure the quality of plate.
7.There is washing machine of inner-tank style with glass, which provides safety protection for the operators.
8.Air machine gets wind outside with the filter, which assure the cleanness of the air. Meanwhile, the big power air machine can assure the complete clean and dry of the glass.
9.Pivotal transmission part adopts the expand-tight link to insure the precision of adjustment as well as the reliability of transmission.
10.Connection adopts aeronautic plug, easy to install and maintain.
11.The bridge style insures no axis falling off and no axis bending when producing big plate of glass.
12.Special design of nozzle to make washing conveniently.
13.Advanced acetabula style inner plate.
14.Synchronous implement of plate section to make the four-point tight pression.
15.Digital control of washing machine and plate section.
technical data:
equipment height required
1. lead-in conveyer 3180
2. washing-drying conveyer 3550
3. out-let conveyer 3180
4. glass placing section 3180
5. aluminium frame mounting position section 3180
6. automatic plate pressing section 3400
7. inspecting section 3180
8. tilting table 3120
required water, electricity, gas data of insulating glass production line
1. electricity: 380V、38.6KW
2. water: 0.9ton/hour
3. gas: air exhaust 1.0m3/min electrical power 7.5KW rating power 0.8Mpa
plate press typle
Modle：LBZ2200JL
Max Size：2200mm×3500mm
Min size： 300mm×450mm
Output：80Units/hours
MAX THICKNESS：50mm
Washing Speed：0-12m/min
Conveyor Speed:0-48m/min
Spacer Thickness:4-24mm
Air Compressor：1.0m3/min
Press：0.8Mpa
Power：7.5Kw
