Home >Products Catalog > TK-750/760A Portable Transceiver

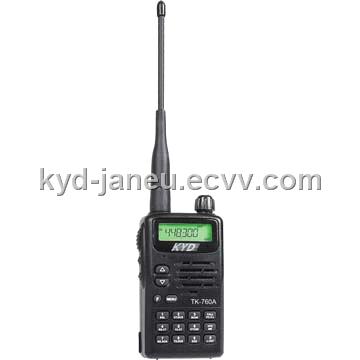

TK-750/760A Portable Transceiver

Supply Ability:	60,000 Set/Sets per Month
Shipping:	15 to 20 days upon receiving payments.
Payment Terms:	L/C, T/T(Bank Transfer)

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Place of Origin:	Fujian in China
Packaging Details:	10 sets in one box

Specifications

Detailed Product Description

Model	TK-750A	TK-760A
Frequency Range	VHF	UHF
	136-174MHz	400-440MHz 440-480MHz
Channel Capacity	199
PLL Channel Spacing	5/6.25/10/12.5/25KHz
Battery Voltage	7.4V DC (Li-ion Battery Pack)
Antenna Impedance	50Ω
Operating Temperature	-20+60
Frequency Stability	±2.5PPM
Dimensions (with Battery)	92(H)x53(W)X 30(D) mm
Weight (with Battery)	200g
Standard Package	Radio with Standard Accessories

Compatible With American Military Standard(MIL-STD-810C/D/E)

Features:

Menu Mode

VOX

Keypad

107 DCS

50 CTCSS

Time-out Timer

Low Battery Alert

Li-ion Battery Pack

Multiple Call Tones+1750Hz

LCD Display

Hi/Low Power

PC Programmable

Frequency/Channel Scan

Battery Strength Indicator

Selectable Squelch Level

CO/TO/SE Scan Switchable

Transmitter(Measurements made per TIA/EIA-603)

Receiver(Measurements made per TIA/EIA-603)

Circuit Type	Double-conversion Superheterodyne
IFs	38.850MHz & 450KHz
Sensitivity(12dB SINAD)	0.2uV
Squelch Selectivity	0.15 uV
Adjacent Channel Selectivity	≥65dB
Intermodulation	≥65dB
Spurious Rejection	≥60dB
Image Rejection	≥65dB
FM Ham And Noise	≤-45dB
Modulation Type	16KOF3E
Operating Bandwidth	≤±7KHz
AF Output @ 4 Ohms	0.5W
Audio Distortion	≤5%
