NEW CENTURY COMMUNICATION ELECS CO.,LTD
China Manufacturer with main products: Telecommunication devices, Walkie-talkies, portable transceiver, Two way radio |

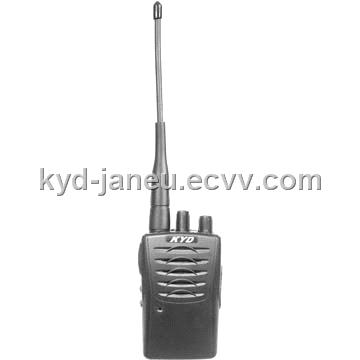

NC-720/730A walkie talkie
| Supply Ability: | 60,000 Set/Sets per Month |
|---|---|
| Shipping: | 15 to 20 days upon receiving payments. |
| Payment Terms: | L/C, T/T(Bank Transfer) |
-
ECVV Safebuy Services
According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
-
Safebuy Service Guarantee
Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.
Related products from verified members
| Place of Origin: | Fujian in China |
|---|---|
| Packaging Details: | 10 sets in one box |
Specifications
Detailed Product Description
|
Model |
NC-720A |
NC-730A |
|
Frequency Range |
VHF |
UHF |
|
136-174MHz |
400-430MHz 430-480MHz | |
|
Channel Capacity |
16 | |
|
PLL Channel Spacing |
12.5/25KHz | |
|
Battery Voltage |
7.4V DC (Li-ion Battery Pack) | |
|
Antenna Impedance |
50Ω | |
|
Operating Temperature |
-20+60 | |
|
Frequency Stability |
±2.5PPM | |
|
Dimensions (with Battery) |
90(H)x53(W)X32(D) mm | |
|
Weight (with Battery) |
180g | |
|
Standard Package |
Radio with Standard Accessories | |
Compatible With American Military Standard(MIL-STD-810C/D/E)
Features:
VOX
107 DCS
50 CTCSS
Priority Scan
Channel Scan
Hi/Low Power
Li-ion Battery Pack
Voice Anunciation
Multiple Call Tones
Time-out Timer
Low Battery Alert
PC Programmable
Busy Channel Lockout
Selectable Squelch Level
CO/TO/SE Scan Switchable
Programmable 25kHz(Wide)/12.5kHz(Narrow) Channel Spacing
Transmitter(Measurements made per TIA/EIA-603)
|
RF Power Output |
4/5W |
|
Modulation Type |
F3E |
|
Maximum Deviation |
≤±5.0KHz(Wide)/≤±2.5KHz(Narrow) |
|
Spurious Emission |
≤65dB Below Carrier |
|
Modulation Distortion |
≤5%(300-3000Hz) |
|
FM Noise |
≤-45dB(Wide)/≤-40dB (Narrow) |
Receiver(Measurements made per TIA/EIA-603)
|
Circuit Type |
Double-conversion Superheterodyne |
|
IFs |
38.850MHz & 450KHz |
|
Sensitivity(12dB SINAD) |
0.2uV(Wide)/0.25uV (Narrow) |
|
Squelch Selectivity |
0.15 uV(Wide)/0.2uV (Narrow) |
|
Adjacent Channel Selectivity |
≥65dB(Wide)/≥60dB (Narrow) |
|
Intermodulation |
≥65dB |
|
Spurious Rejection |
≥60dB |
|
Image Rejection |
≥65dB |
|
FM Ham And Noise |
≤-45dB(Wide)/ ≤40dB (Narrow) |
|
Modulation Type |
16KOF3E/11KOF3E |
|
Operating Bandwidth |
≤±7KHz≤±5KHz |
|
AF Output @ 4 Ohms |
0.5W |
|
Audio Distortion |
≤5% |
