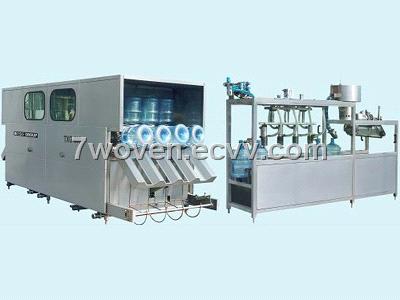

BARRELLED WATER PRODUCTION LINE

Inquiry Now

Specifications

QGFBarreled Production Line is composed of bottle washing machine, bottle filling machine and sealing machine into one body especially for the production of drinking water of 3 and 5 gallons. It is an idea tilting line to produce mineral water, distilled water and purified water.The whole line is made of superior stainless steel,anticorrosive and easy to clean. Sidemen's electric components are adopted as main components. The world famous product of AirTAC and Omron are introduced in the air circuit systems. The machine is compactly conformed to small occupation of land and high efficiency and reliable and stable quality and high automation. Only two operators are needed for a line, which is wholly automatic barreled equipment with motor, electric unit and air three in one.

Main Technical Specifications：

Fillingheads	2
Filling voume	3Gallons/5Gallons
Barrel sizes	￠230-420 ￠276-490
Production capacity	60-120 Barrels/H 380V/0.50 HZ
Power	opening power 3.68KW working power 2KW
Air source	pressure:0.45-0.6 Mpa usage :0.17-0.22 M³/H
Shapr size	370016001800 MM
Overall dimensions	about 600 KG
