| Place of Origin: | Taipei in Taiwan |
|---|
Specifications
General Description:

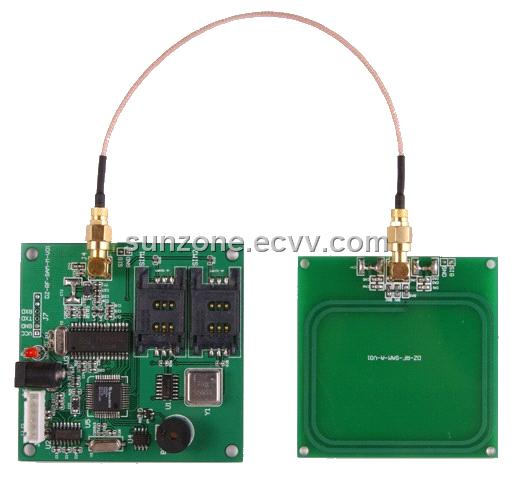

MIFARE read/write OEM module SUZTC-MR01/02 is a very compact size and easy to used device for accessing a MIFARE standard card, MIFARE PRO card, and MIFARE PROX card.
The typical accessing range of this module is 70mm, up to 100mm depending on the antenna of the IC card and Reade
As an OEM module for the OEM product, SUZTC-MR01/02 can be easily integrate with any product and work well . SUZTC-MR01/02 provides TTL/CMOS serial interface which can easily connected to other host device. SUZTC-MR01/02 also support power saving mode for those low power consumption devices or applications. SUZTC-MR01/02 is a contactless ISO 14443 and MIFARE reader / writer, featuring a smartcard coupleur (ISO 7816), 1~3 internal micro SIM/SAM slots, and popular fingerprint reader.
Available Versions :
--SUZTC-MR01/02 over USB port,
--SUZTC-MR01/02 over serial port.
--SUZTC-MRP76 TTL interface
Contactless Interface:
--Compliance: ISO/IEC 14443 (1, 2, 3 and 4),
--T=CL protocol embedded in coupler's firmware (256-byte frames),
--Work with any ISO/IEC 14443 A or B smartcard (Philips DESFire, ProX, SmartMX, Infineon SLE66, STMicroelectronics ST19, ... ),
--Read / write Philips MIFARE Classic and Ultra Light cards or tags ; CRYPTO1 cipher unit with secure key storage (MfRC531 chipset),
--Other cards support (Calypso, Jewel, SR176, ...) on request,
--13.56MHz RFID transmission, 106kpbs to 424kbps baud rate,
--Integrated antenna; card operating distance : 0 to 8cm,
--2 LEDs (red / green).
--Smartcard and Micro SIM/SAM Interface
--1 ISO-sized slot (ISO 7816 1 and 2),
--1~4 micro SIM/SAM slots,
--Compliance: ISO 7816 (3 and 4), T=0 & T=1 protocols (Gem Plus Gem Core chipset),
--3V or 5V smartcards,
--Baud rate: up to 115kpbs
Integration:
--USB: self-powered by computer, Windows 2000 & XP driver available on this website,
--Serial: 9 to 12V DC power supply (not included),
