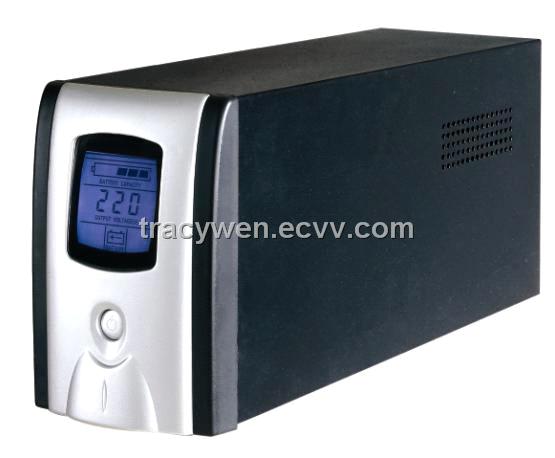

offline UPS UN500-1000VA

FOB Price:	30.00 - 60.00 USD/Piece
Payment Terms:	T/T(Bank Transfer)

In Stock

Inquiry Now Start Safebuy Order

ECVV Safebuy Services

According to the requirements of buyers, ECVV.com will purchase the cost-effective Chinese products for you from the well-chosen suppliers database which was accumulated in the past 10 years.Learn More>>
Safebuy Service Guarantee

Provide financial security for multinational purchaser; Determine delivery time and acceptance product according to the purchasing requirements; Arrange Chinese export declarations and international logistics; Provide unified delivery of products from different suppliers.

Place of Origin:	Guangdong in China

Specifications

TECHNICAL SPECIFICATION

MODEL			UN500	UN1000
Nominal Capacity			500VA/300W	1000VA/600W
Input	Voltage Range		80~140VAC/145~280VAC
	Frequency		50/60Hz
Output	Voltage Range		110/220VAC ±10%
	Frequency		50Hz ±5%
Transfer time			< 10ms
Battery	Type		Sealed free maintenance lead acid battery
	Capacity		*12V，7AH 1PCS**	*12V,7AH 2PCS**
	Recharge time		8 hrs to 90% of capacity full load discharge
	Protection		AUTO protect
	Backup time（half load）		5~7 min
Function			Auto voltage output on AC mode, Auto shutoff if short circuit or overload
DB-9 port,communication software			Optional
Protection	AC mode		Fuse
	Short circuit	AC	Fuse
		Invert mode	Auto protect
Alarm	Alarm	Battery Discharge	Alarm beeps every four seconds
		Battery low	Alarm beeps every second
		Overload	Alarm beeps continuously
	LCD display （virtual display）	AC mode	AC indicator lighting
		Battery mode	Battery indicator lighting
		Overload	Overload indicator lighting, Ouput display zero
Environment	Operating temperature		0℃~40℃
	Operating Humidity		0-90% non-condensing
	Noise		＜35dB（1 meter distance）
Dimension（L×W×H）mm			*390170230*	*480225295*
Net weight(N.W)			6.8KG	11.5KG
Gross weight(G.W)			7KG	11.7KG
